DXS48-15 Electric Double Scissor Lift Table

DXS48-15 Electric Double Scissor Lift Table Image 1

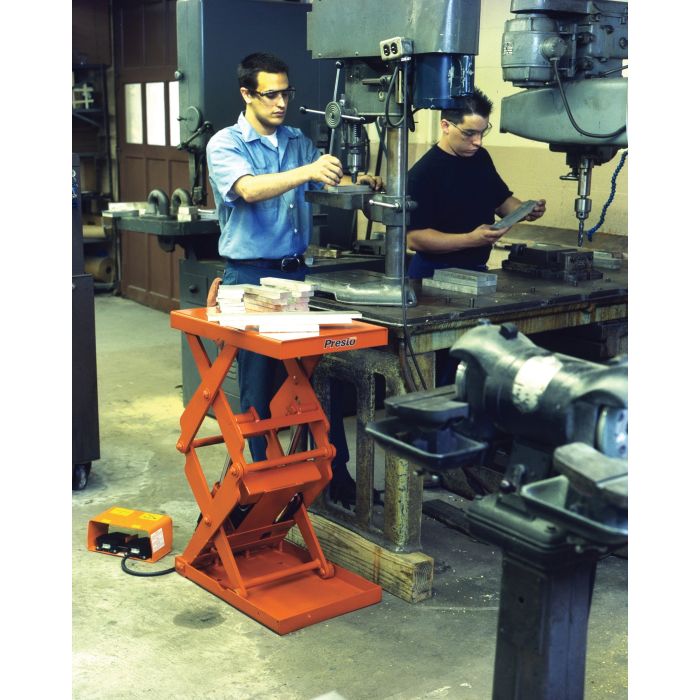

DXS48-15 Electric Double Scissor Lift Table Image 2

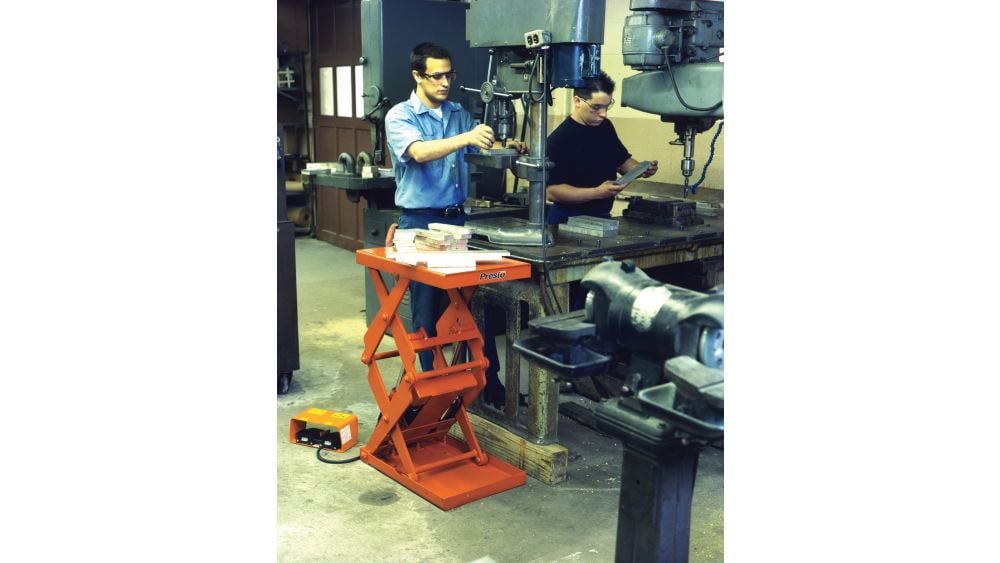

See it in the Wild

Product Information

The DXS48-15 scissor lift table is used for higher lifting heights while providing a small footprint. Its hinged platform provides accessibility to the cylinders and power unit when in its fully lowered position. The lift table is equipped with an internal ⅓ HP 115/1/60 power unit and standard hand controls.

Specifications

Model	DXS48-15
Capacity	1,500 lbs
Standard Platform	24" x 48"
Max. Platform	36" x 60"
Raised Height	55 1/2"
Lowered Height	7½"

Max. Platform Size	36" x 60"
End/Side Load Capacity	1,500 lbs
Vertical Travel	48"
Brand	Presto
Lifting Speed	54 sec
Voltage	115/1/60

Motor	½ HP
Warranty	5 Year Structure\| 2 Year Limited on Components
Estimated Product Availability	Ships in 4 - 6 Weeks
Shipping weight*	650
Shipping Class*	70
FOB	Manila, AR
