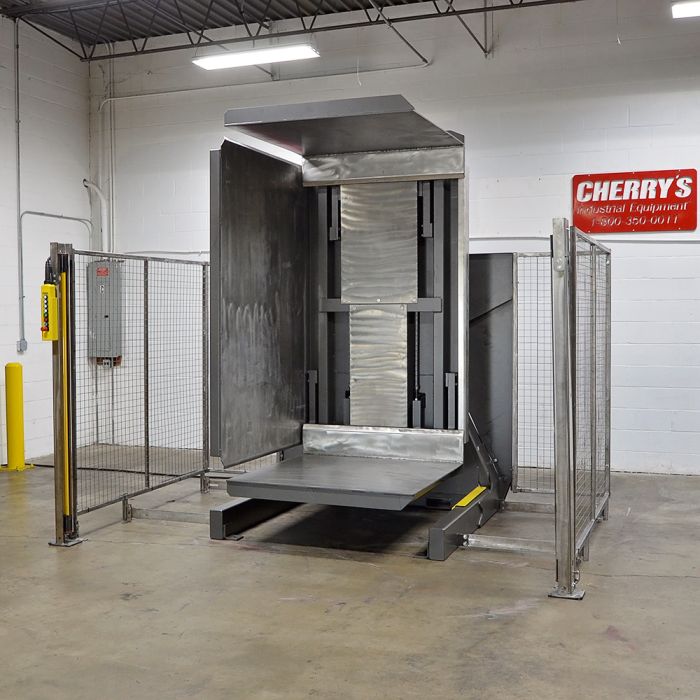

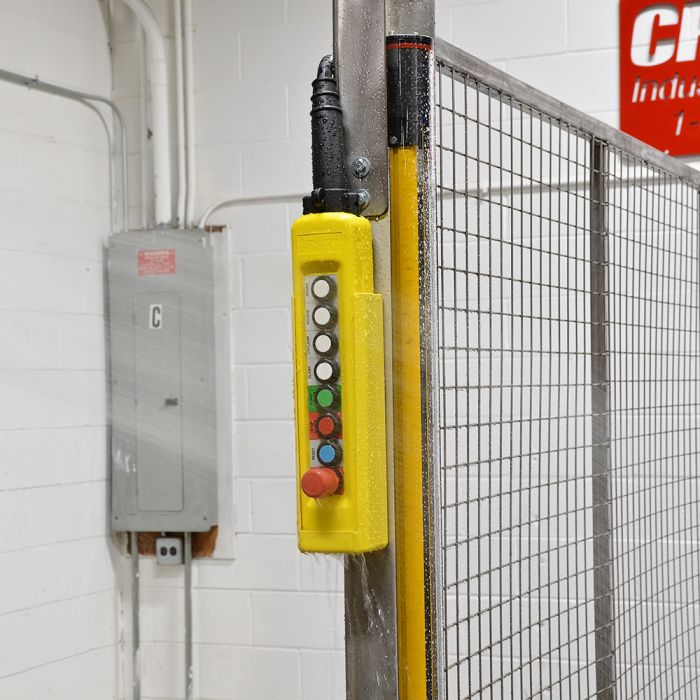

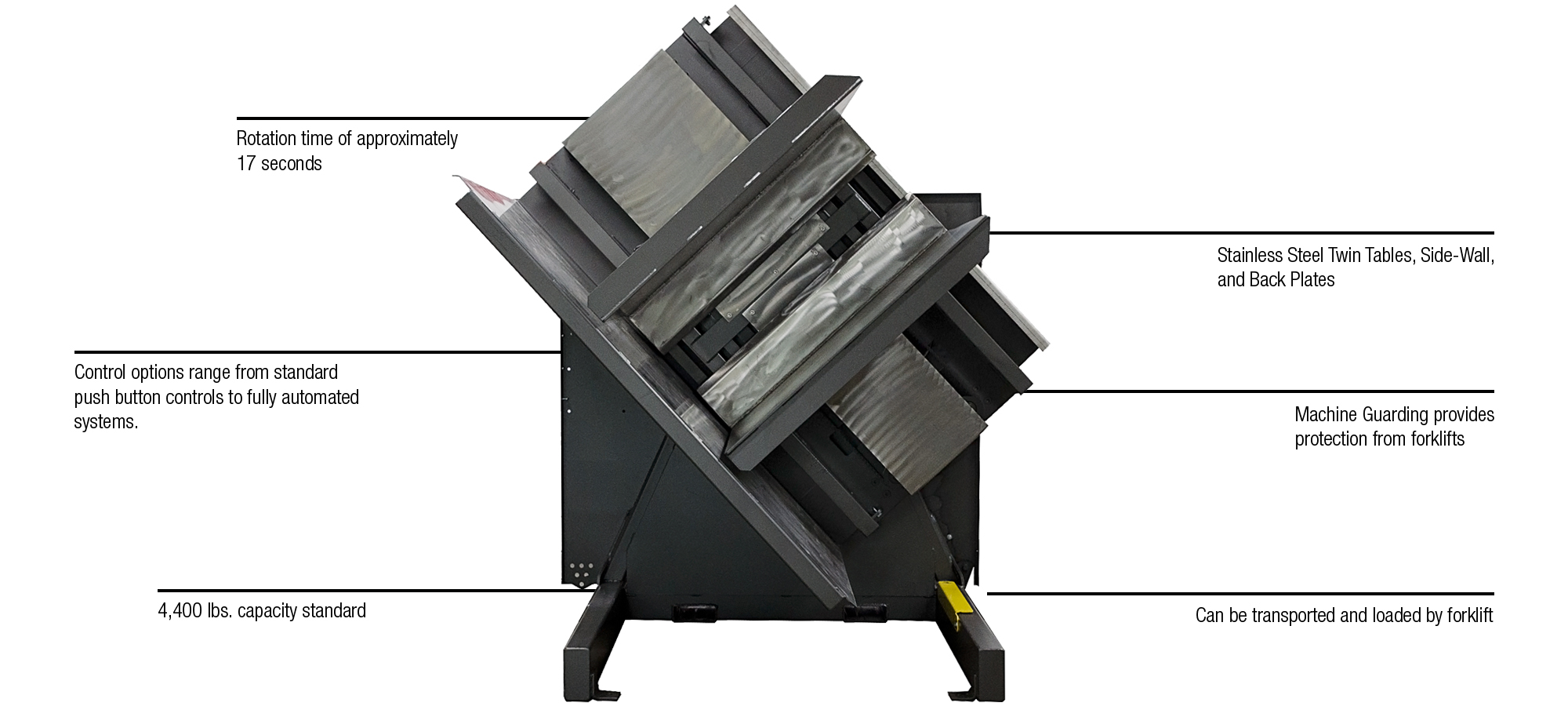

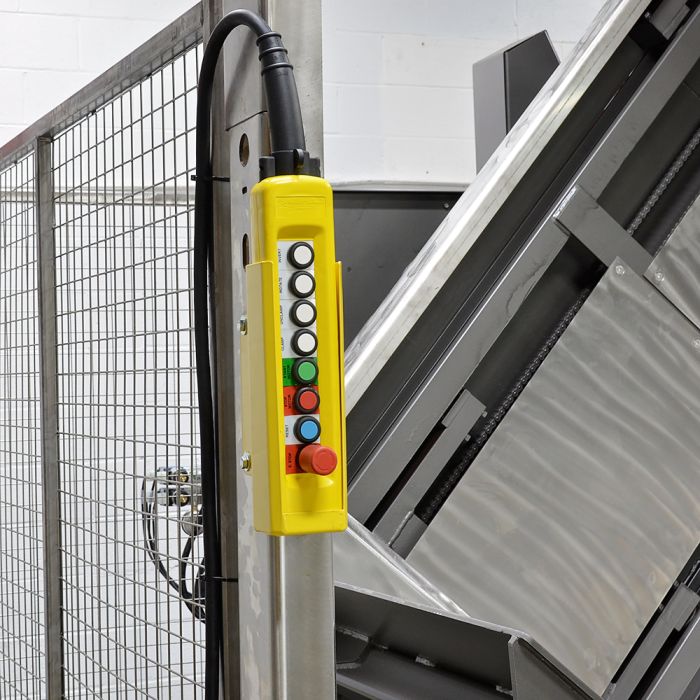

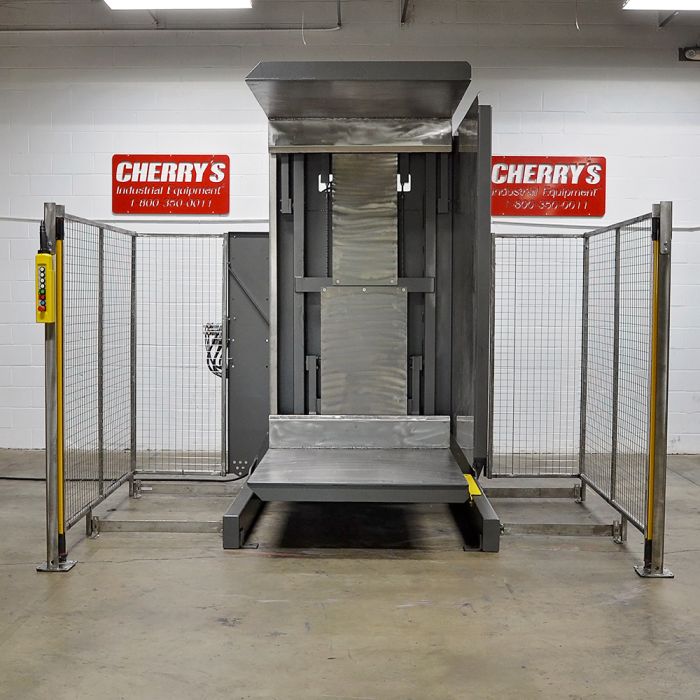

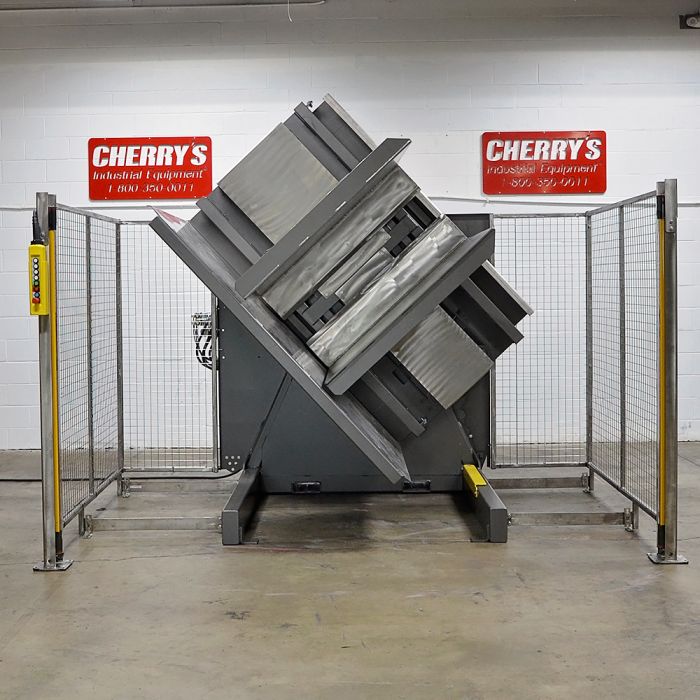

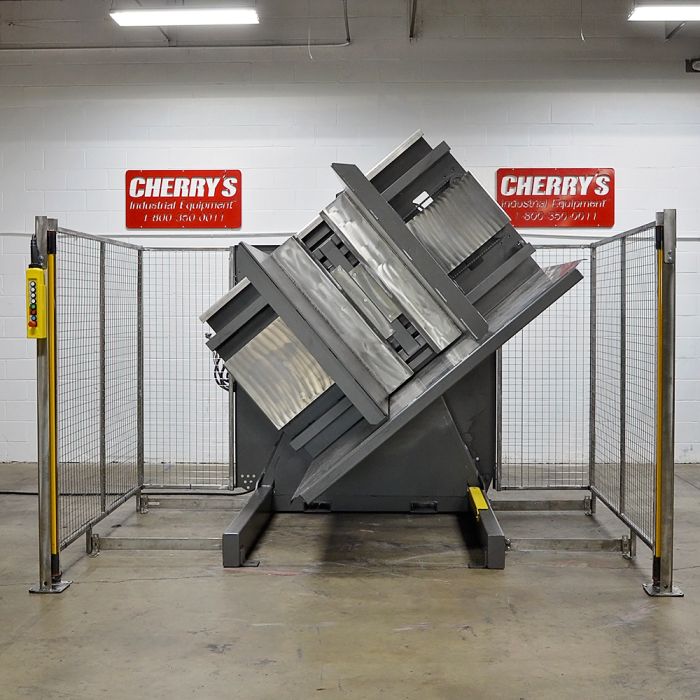

The DC-91-SS Stainless Steel Pallet Inverter offers an increased range over our single clamping plate models. Dual clamping plates travel in unison, near perfect center balance provides stable inversion of tall loads up to 91" or short partial loads down to 23". Typical users include food ingredients, bakery, fertilizer, and pharmaceutical plants or inbound load transfers where a variety of products may be handled: boxes, drums, pails, packaging material. Standard Features include: UL508 Certified electrical panel, push button pendant control, maintenance lock bar, leveling tables and 2" square tube heavy duty machinery guards. Three year parts and labor warranty.

| Model | DC-91-SS |
| Controls | Push Button Pendant |
| Loading Table Size | 50" x 51" |
| Max. Jaw Opening | 91" |
| Min. Jaw Opening | 23" |
| Capacity | 4400 lbs. |
| Adjustable Clamp Pressure | 400-2000 PSI |
| System Pressure | 2200 PSI |
| Maintenance Lock Outs | 4 |
| Motor | 5 HP |
| Power Source | 208/230/460/575V |
| Certifications | 0 |
| Warranty | 3 year "hassle free" parts and labor. Extended service agreements available. |
| Loading Height | 17.50" |
| Operating Width | 110.75 excluding guards |
| Operating Depth | 87" |
| Operating Height | 118.375 |
| Width With Guards | 136.75 - GR/135.375 - HSG |
| Shipping weight* | 5600 lbs. |
| Shipping Dimensions | 84" L X 84" W X 96" H |
| Brand | Cherry's Industrial Equipment Corp |
