DC-2CDLR-IL-FSW Inline Pallet Inverter


DC-2CDLR-IL-FSW

The Modular In-Line 180 degree Dual Clamp Load Inverter features a folding sidewall and top/bottom clamp tables with pallet grippers to securely handle plastic, wood, and CHEP pallets. Designed for seamless integration, it operates in-line with powered infeed/outfeed roller conveyors and a downstream automatic stretch wrapper, delivering efficient, hands-free load inversion for high-throughput environments.

Request a Quote

Call 847-443-3861 to speak with our experts

DC-2CDLR-IL-FSW Inline Pallet Inverter
DC-2CDLR-IL-FSW Inline Pallet Inverter Image 1
DC-2CDLR-IL-FSW Inline Pallet Inverter Image 2
DC-2CDLR-IL-FSW Inline Pallet Inverter Image 3
DC-2CDLR-IL-FSW Inline Pallet Inverter Image 4
DC-2CDLR-IL-FSW Inline Pallet Inverter Image 5
DC-2CDLR-IL-FSW Inline Pallet Inverter Image 6
DC-2CDLR-IL-FSW Inline Pallet Inverter Image 7
DC-2CDLR-IL-FSW Inline Pallet Inverter Image 8

See it in the Wild

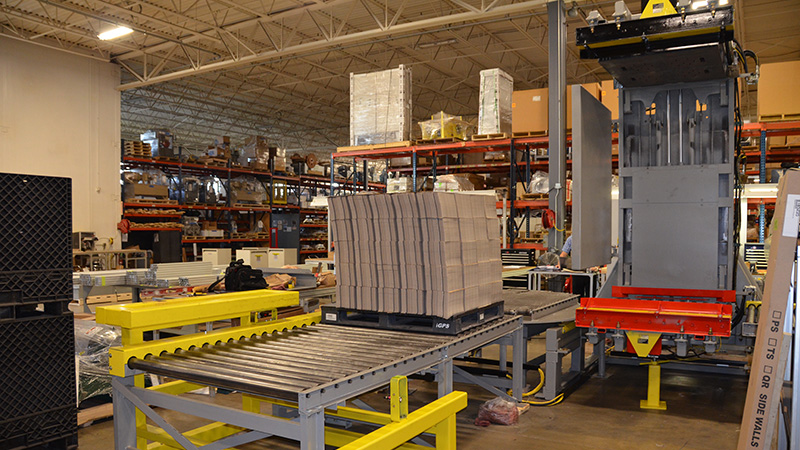

Inline Load Inverter with folding sidewall Inline Load Inverter with folding sidewall

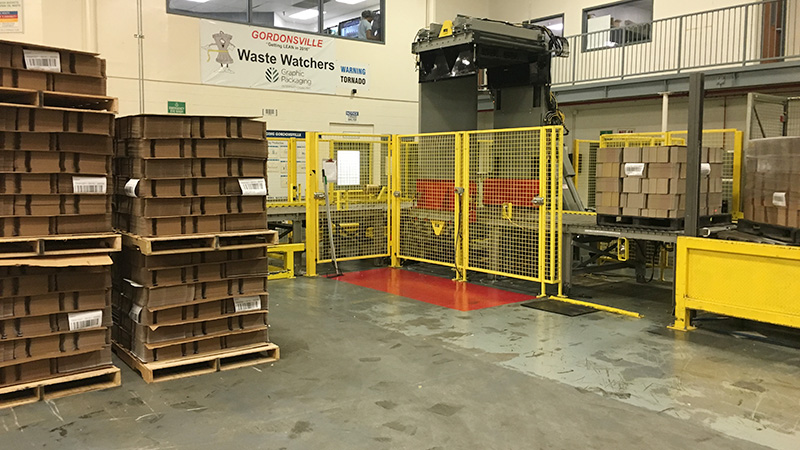

Inle Pallet Inverter with Pallet Grippers Inle Pallet Inverter with Pallet Grippers
Integrated infeed conveyors and turntable Integrated infeed conveyors and turntable
×

Product Information

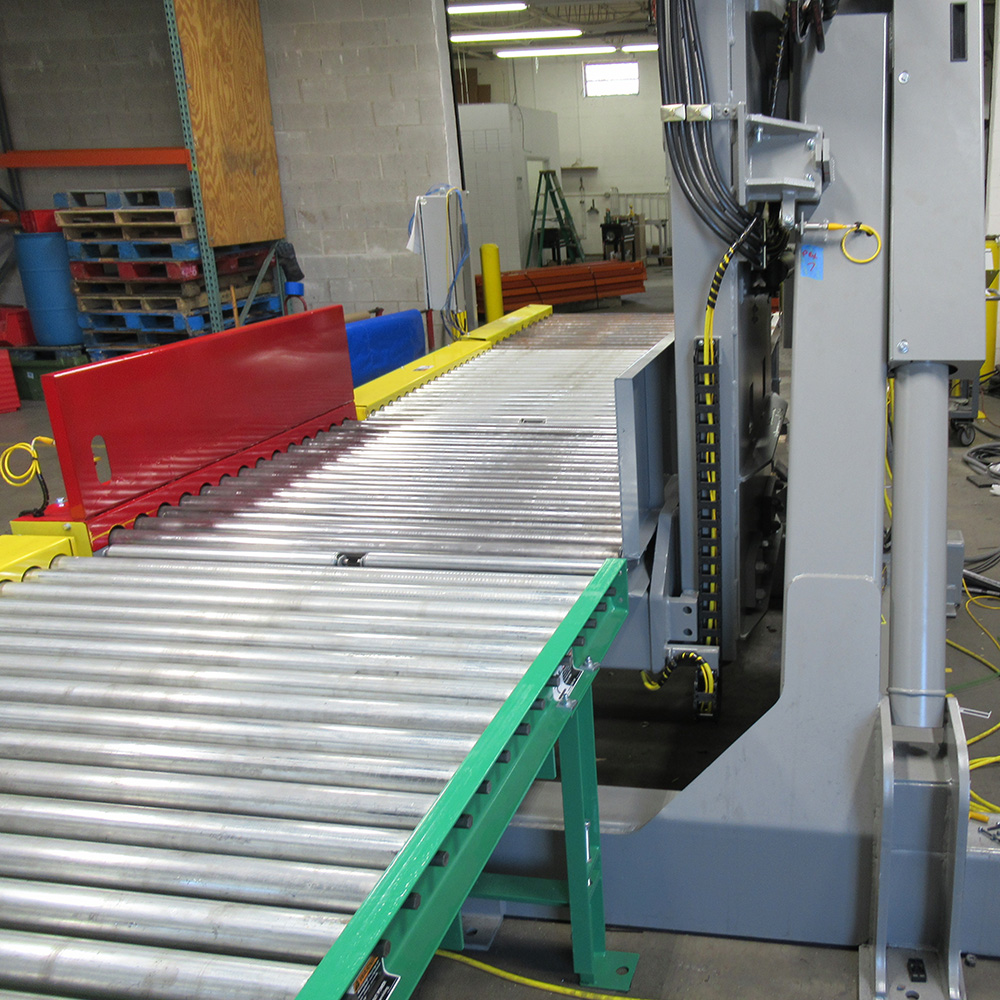

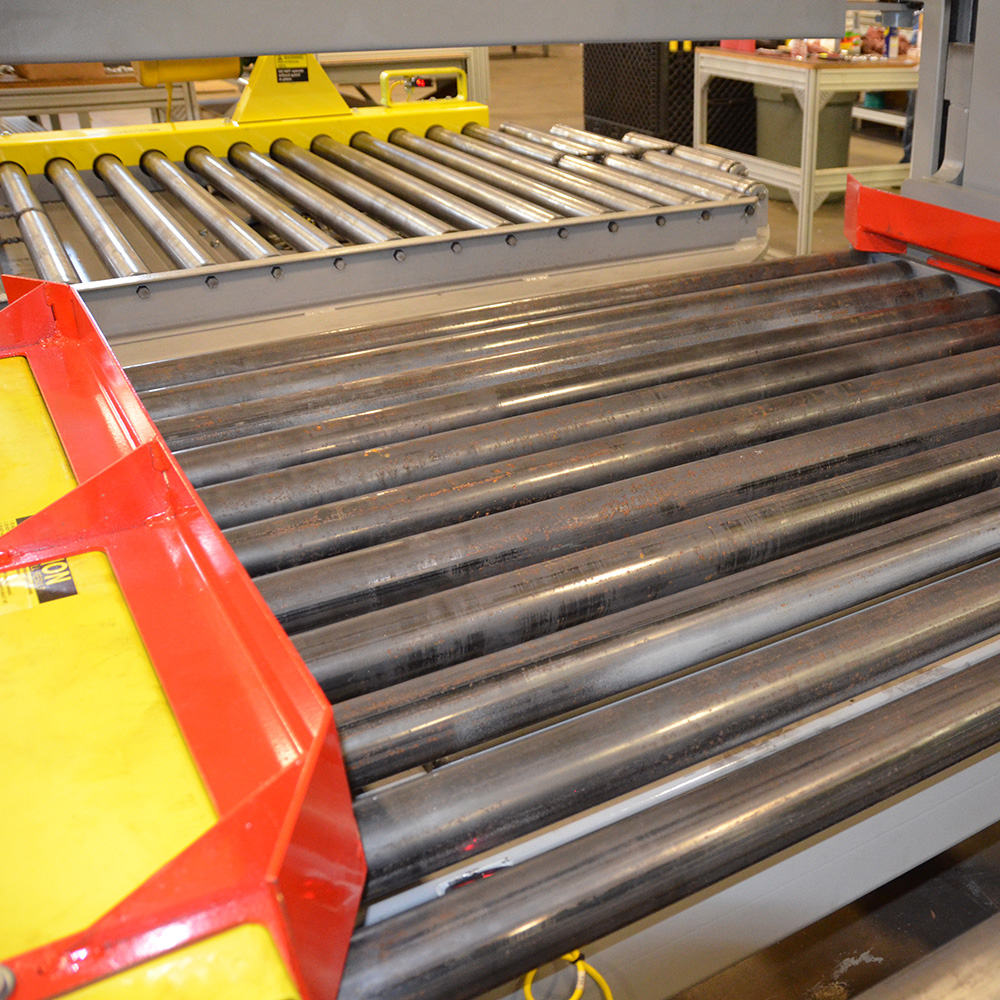

The inverter is compatible with plastic pallets, white wood pallets, and CHEP pallets, and uses hydraulically operated pallet grippers to firmly retain the top plastic pallet during inversion - this pallet becomes the bottom pallet post-cycle. A hydraulically operated folding sidewall enables smooth product entry and exit, activated during the second cycle of alternating operation. Integrated with infeed and outfeed powered roller conveyors and designed to function alongside an automatic stretch wrapper, this inverter delivers a seamless and automated end-to-end load handling solution.

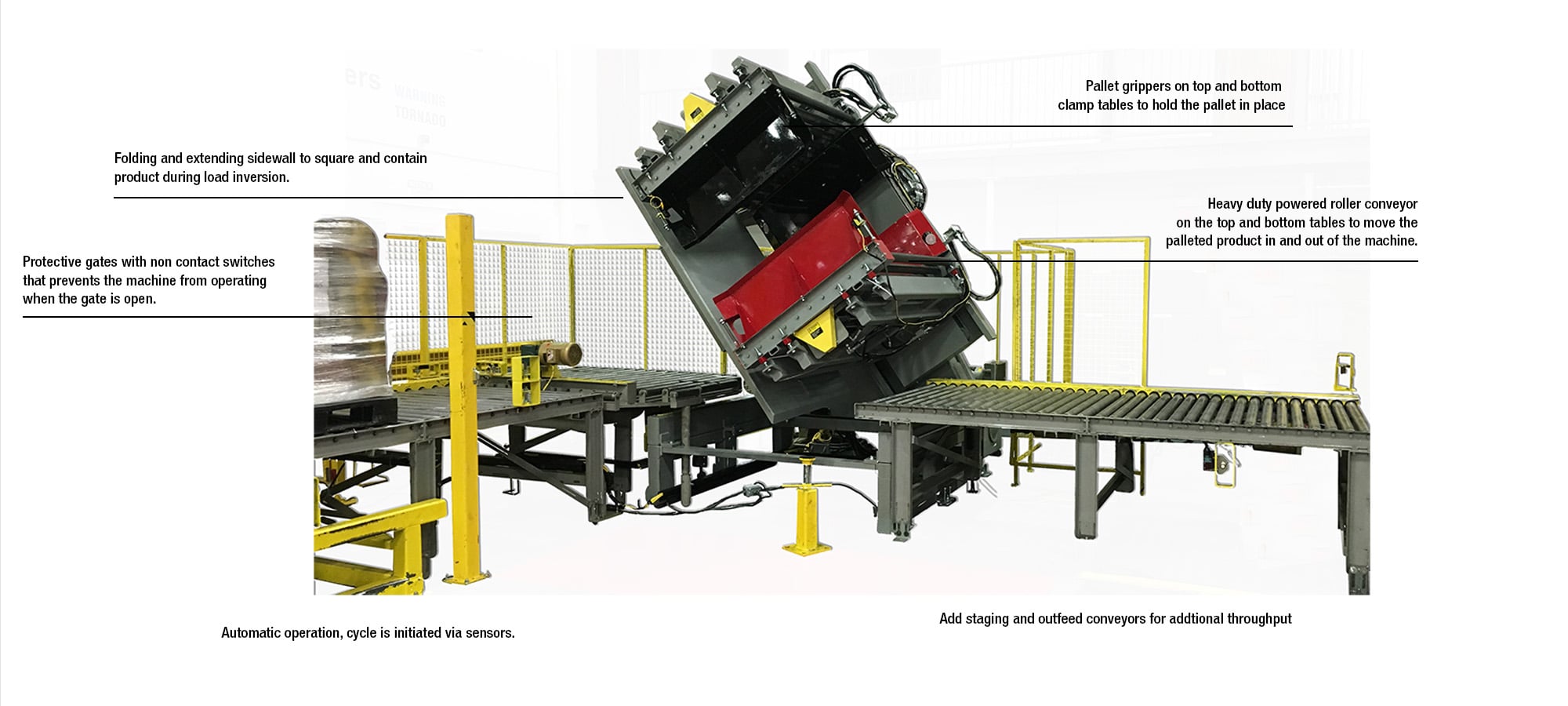

Product Tour


Specifications


ModelDC-2CDLR-IL-FSW
Max. Jaw OpeningVaries
Min. Jaw Opening (between rollers)Varies
Loading HeightTypical 18" TOR
Capacity4,400 lbs.

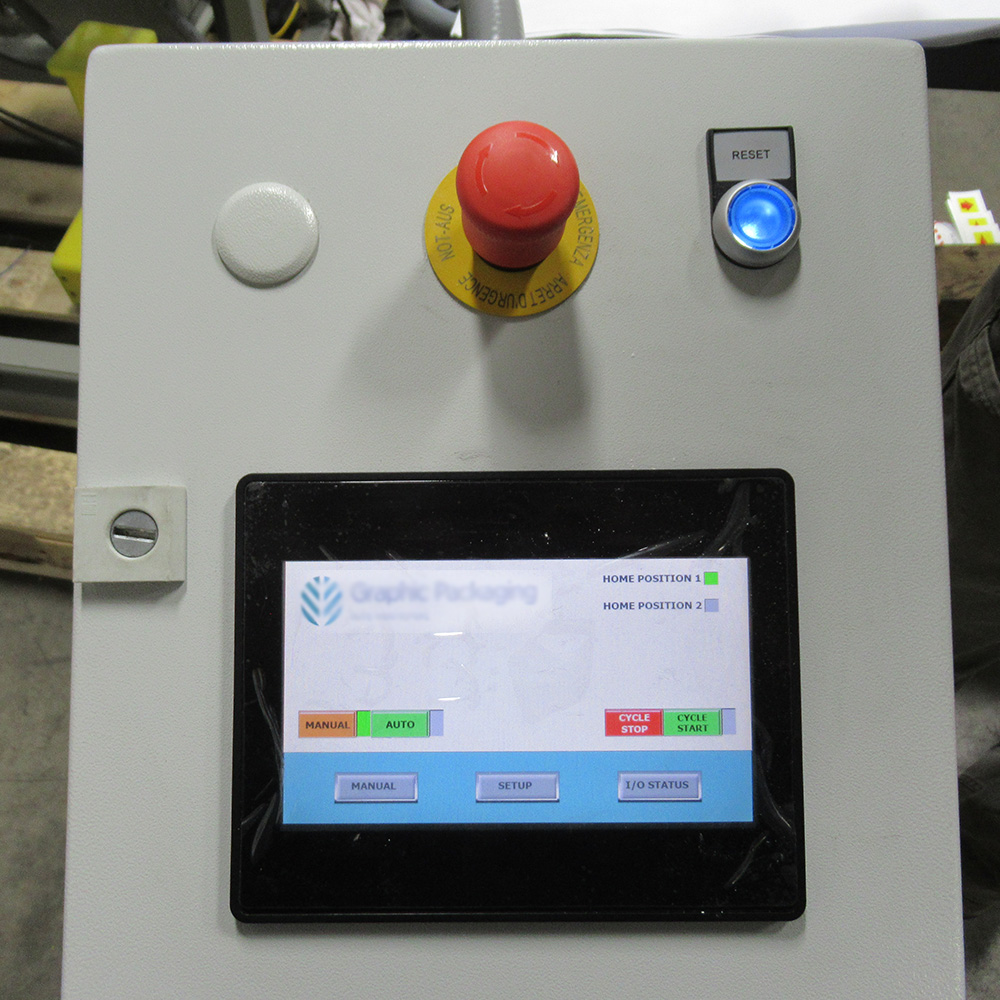

ControlsHMI with manual overide
Pallet TypePlastic, CHEP or GMA
Pallet GrippersHydraulically operated arms (front and back) retain the top pallet.

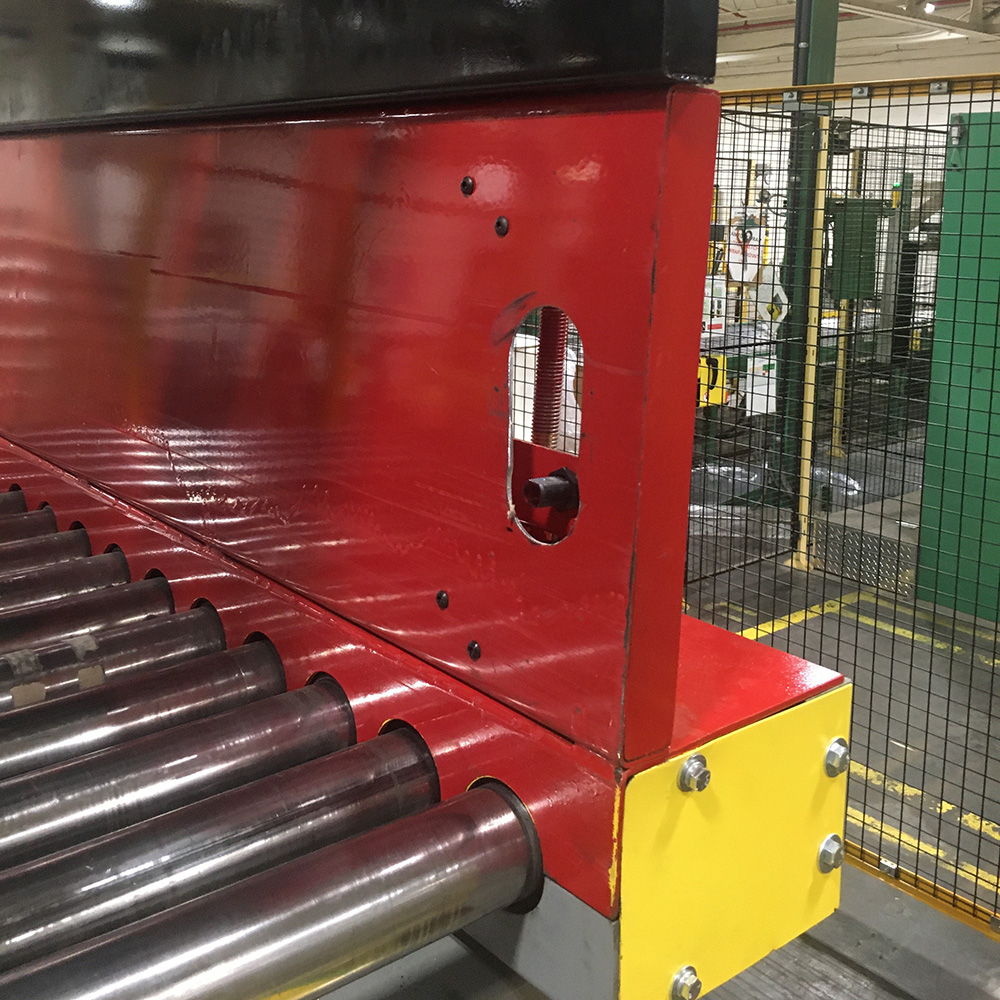

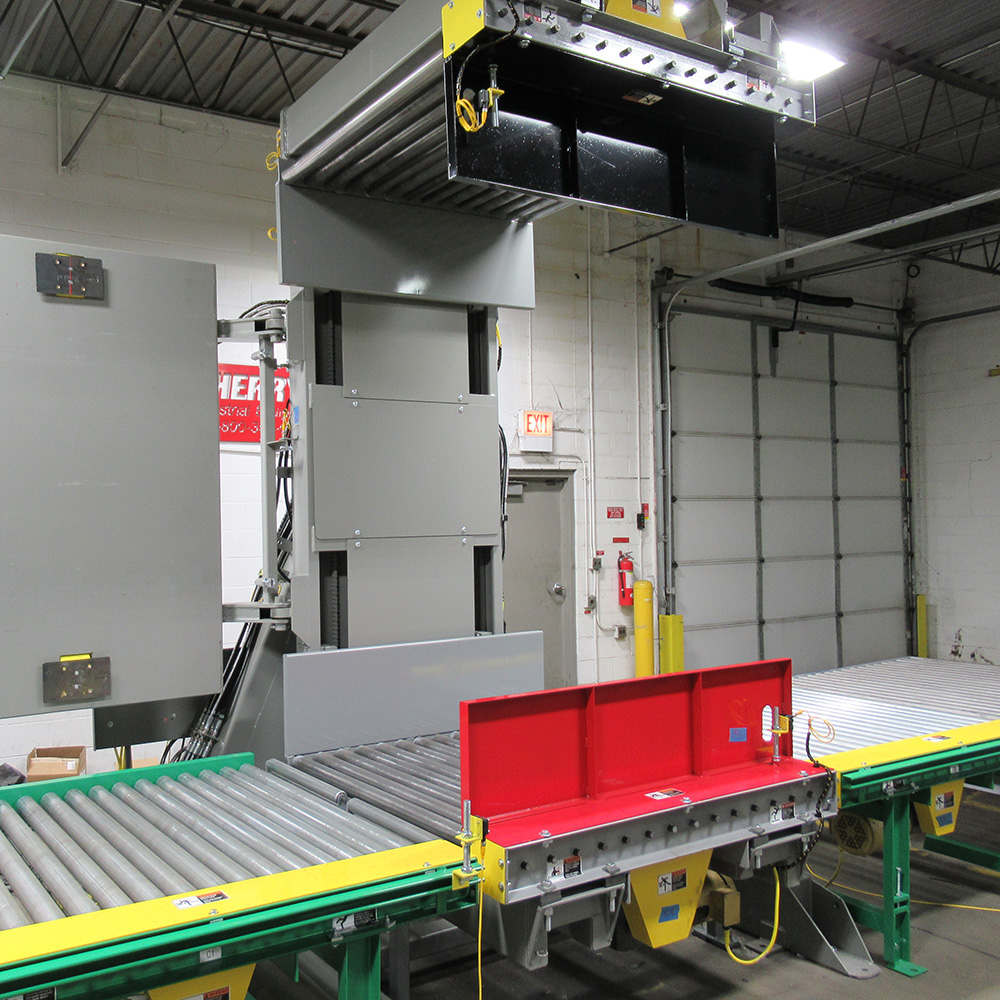

Folding sidewallHydraulically operated sidewall unfolds allowing product to transition into the inverter and after product Inversion.
Extending sidewallHydraulically extending wall that squares and supports the load prior to inversion
System Pressure2200 PSI
Adjustable Pressure Relief1000-2000 PSI
Cycle RateVaries
CertificationsUL508A (UL Listed)
Power Source208/230/460/575V
Finish2 part Epoxy Paint
Warranty3 year parts and 1 year labor. Extended service agreements available.
BrandCherry's Industrial Equipment Corp
