SC Pallet Inverter - pallet grippers

SC-40P/PG

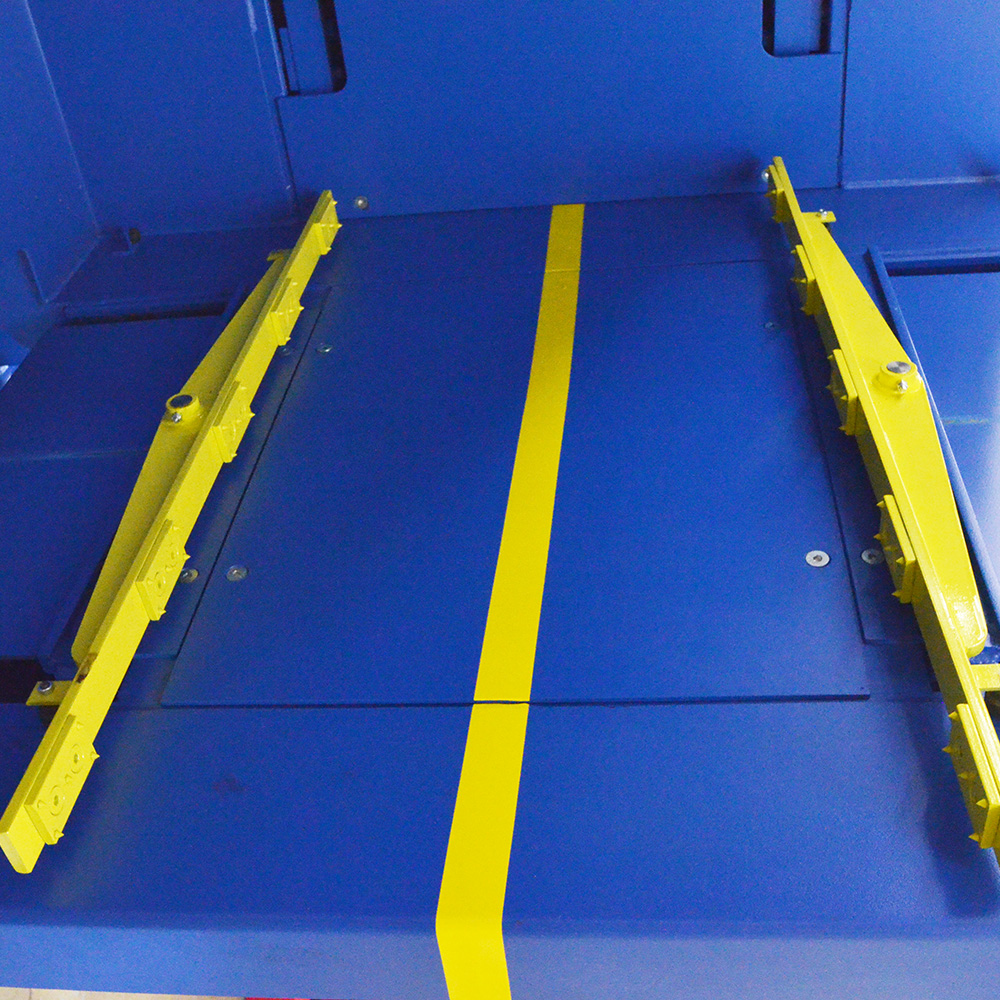

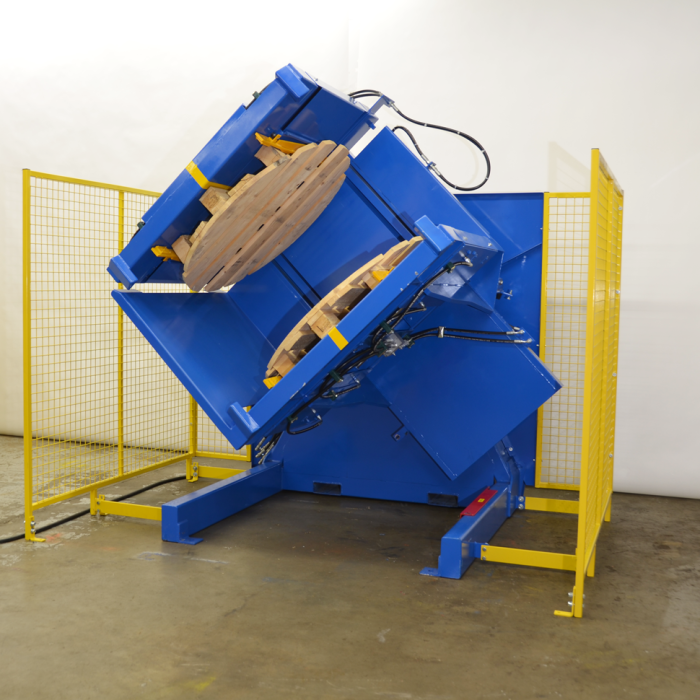

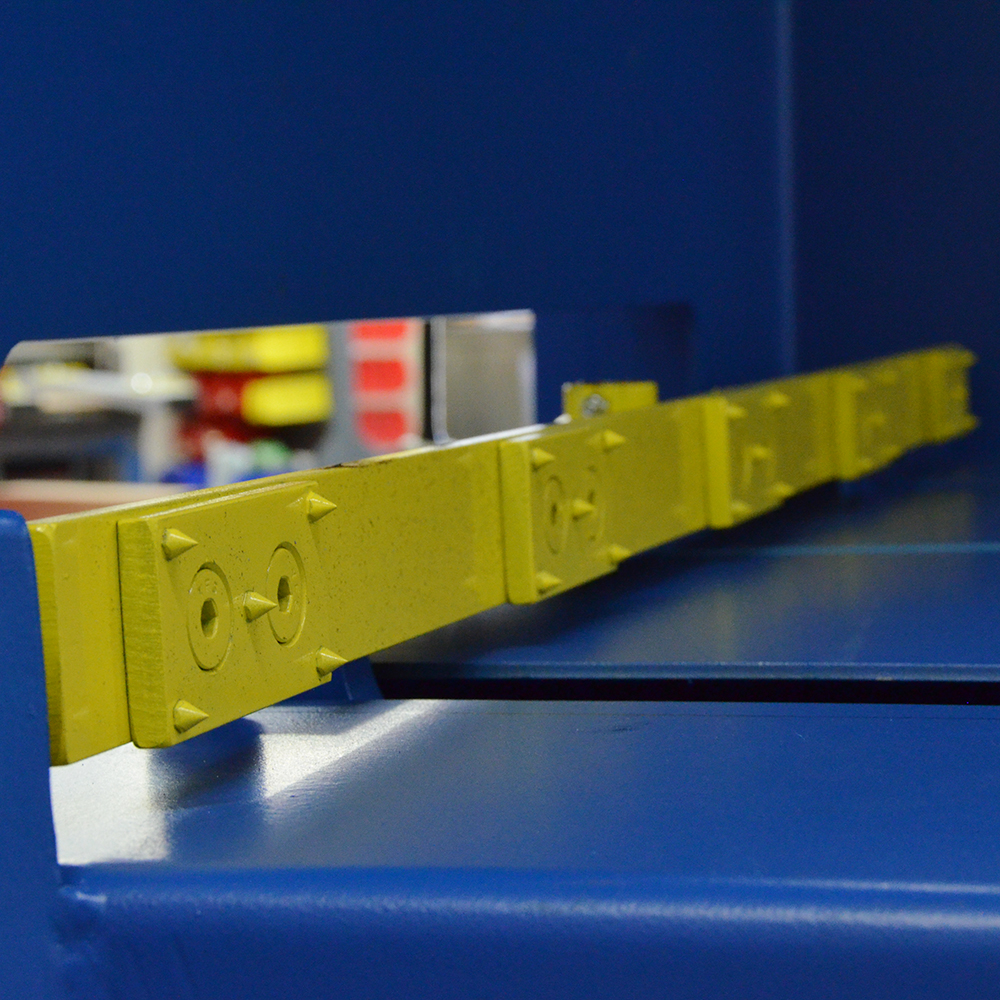

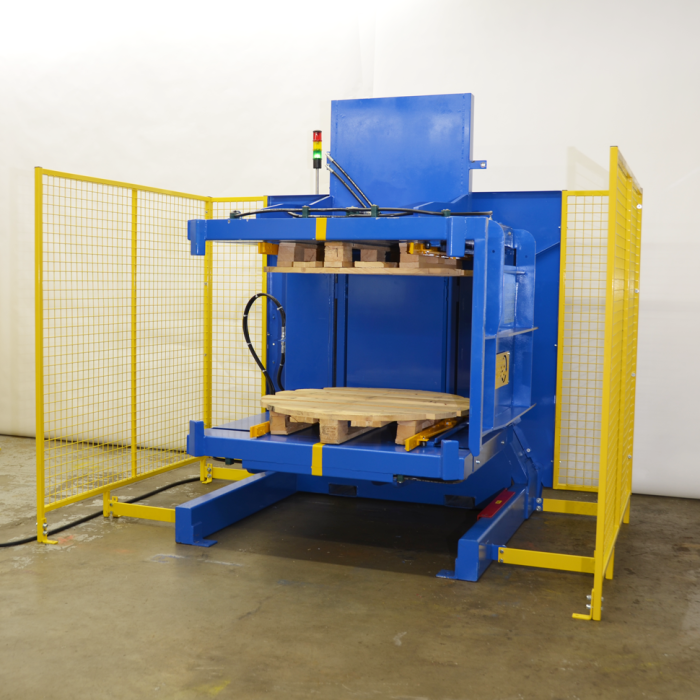

The SC-40P/PG custom built pallet inverter shown with one fixed table, one moving clamping plate plus pallet retaining top and bottom grippers . Customization can include: 4400, 6600, 8.800 lb capacities; push button, lanyard or auto controls; standard or continuous duty power pack; extended clamp range, light curtains and perimeter guards for employee protection.

Request a Quote

Call 847-443-3861 to speak with our experts

Product Details

SC Pallet Inverter - pallet grippers Image 1

SC Pallet Inverter - pallet grippers Image 2

SC Pallet Inverter - pallet grippers Image 3

SC Pallet Inverter - pallet grippers Image 4

SC Pallet Inverter - pallet grippers Image 5

SC Pallet Inverter - pallet grippers Image 6

SC Pallet Inverter - pallet grippers Image 7

SC Pallet Inverter - pallet grippers Image 8

Product Information

Cherry's can customize the SC pallet inverter to handle increased weights, large sheets, coils, unusual shapes or other materials that require simple 180 degree inversion. Interested in saving more time and eliminating steps, we can add automatic sequenced controls and pallet retaining gripper bars to eliminate manual pallet handling. From imagination to reality - with 3D modeling software we can take something as simple as a sketch on a napkin and turn it into a custom solution for your business. We\'re local to your facility - all of our engineers are US based, our equipment is built using US made parts in our US manufacturing plant.

Product Tour

Specifications

Model	SC-40P/PG
Controls	Automatic operation
Loading Table Size	Varies
Max. Jaw Opening	40"
Min. Jaw Opening	7"
Pallet Clearance	Varies
Finish	Two part epoxy
Capacity	4,400 Lbs
Adjustable Clamp Pressure	400-1600 PSI

System Pressure	2200 PSI
Speed Control	Yes
Maintenance Lock Outs	4

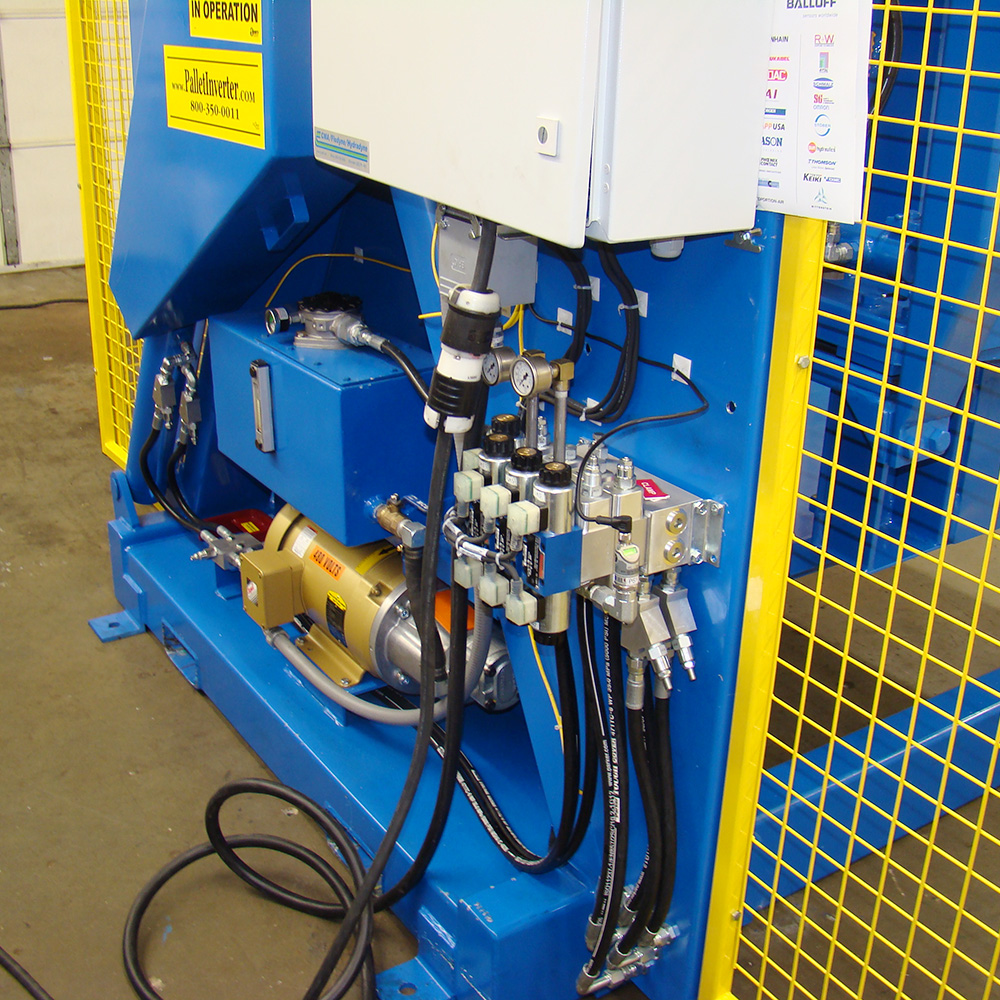

Motor	5HP
Power Source	208/230/460/575V 3 phase - please specify
Certifications	UL
Warranty	3 year "hassle free" parts and labor
Loading Height	Varies
Loading Height Upright	Varies

Operating Width	Varies
Operating Depth	Varies
Operating Height	Varies
Loading Height Inverted	Varies
Turning Radius	Varies
Shipping Class*	100
Shipping weight*	Varies
Brand	Cherry's Industrial Equipment Corp
