180 Degree Box Dumper


SC-75P/HBG

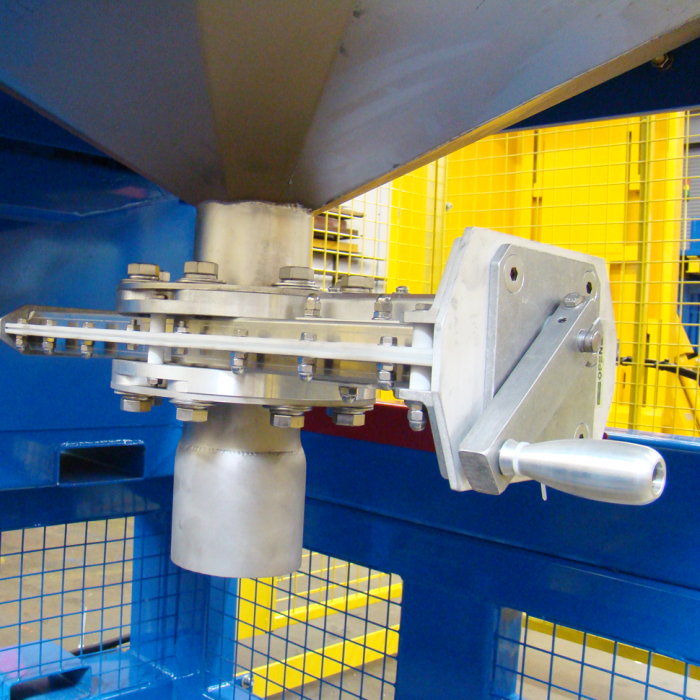

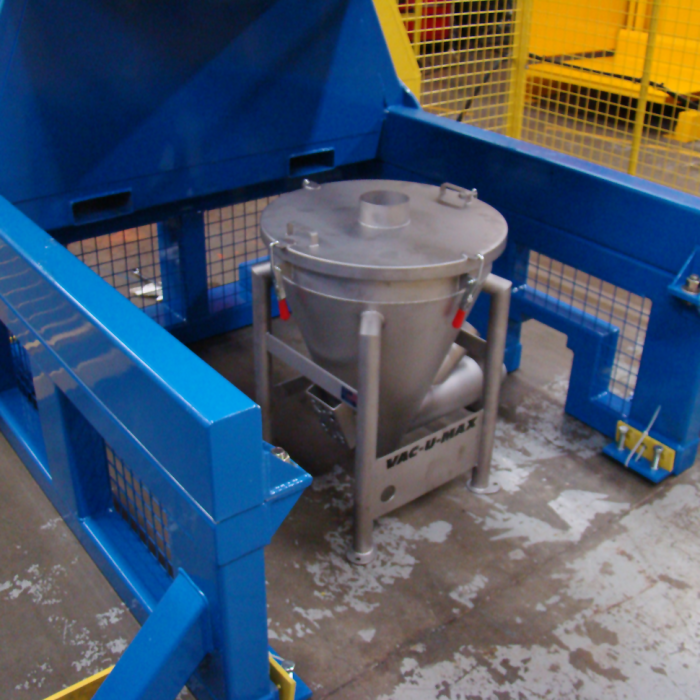

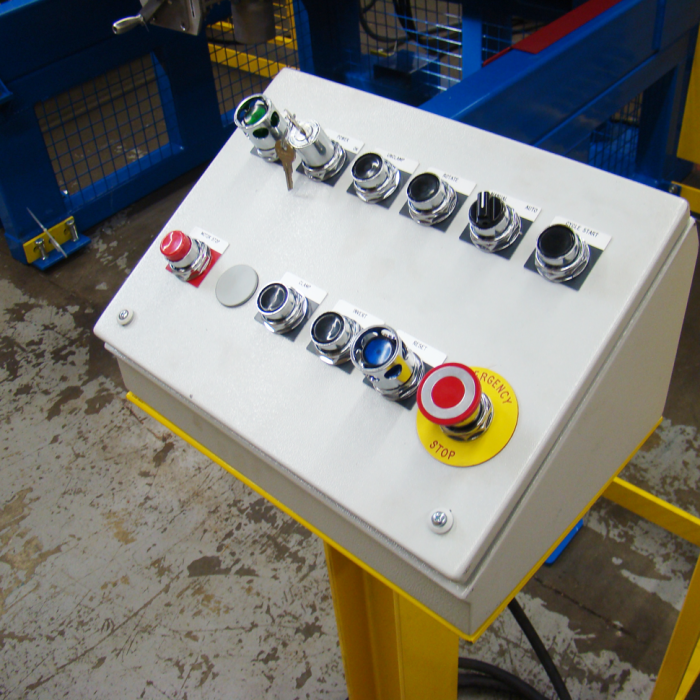

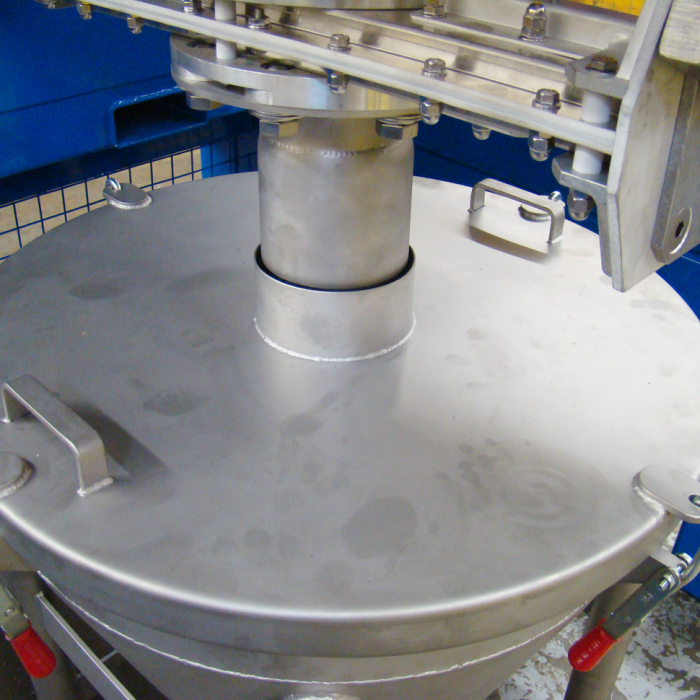

The SC-75P/HBG pallet inverter is compact by design and takes up less floor space than traditional box dumpers. Invert the box 180 degrees to dump bulk materials into a hopper to meter powders/seeds through a gate valve for dust-free operation. Customization can include: raised platform to increase dump height; push button, lanyard or auto controls; manual or pneumatic slide gate; extended clamp range, multiple stop locations, light curtains and perimeter guards for employee protection.

Request a Quote

Call 847-443-3861 to speak with our experts

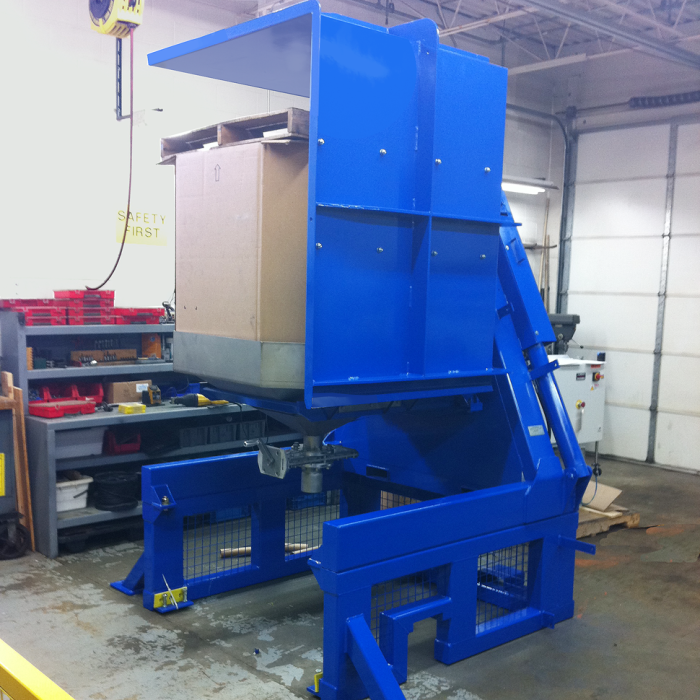

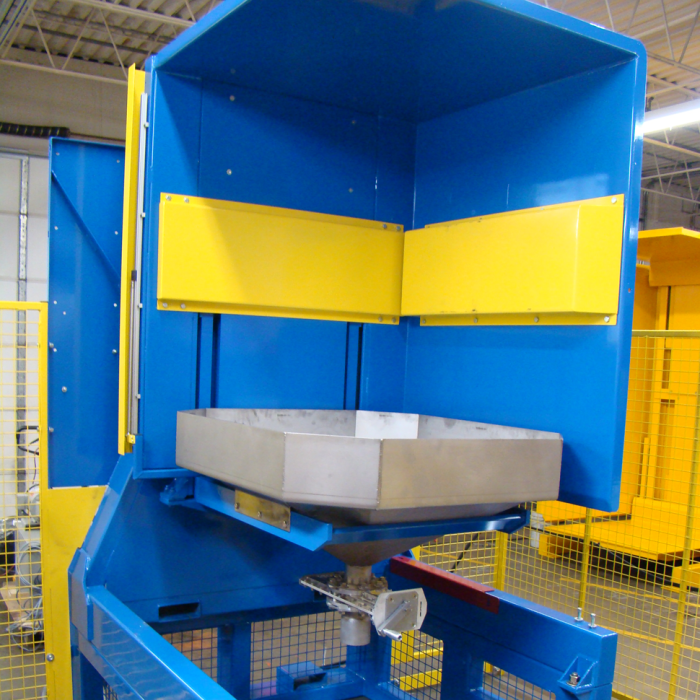

180 Degree Box Dumper
180 Degree Box Dumper Image 1
180 Degree Box Dumper Image 2
180 Degree Box Dumper Image 3
180 Degree Box Dumper Image 4
180 Degree Box Dumper Image 5
180 Degree Box Dumper Image 6
180 Degree Box Dumper Image 7
180 Degree Box Dumper Image 8

Product Information

Cherry's can customize the SC pallet inverter to handle increased weights, large sheets, coils, unusual shapes or other materials that require simple 180 degree inversion. Interested in saving more time and eliminating steps, we can add automatic sequenced controls and pallet retaining gripper bars to eliminate manual pallet handling. From imagination to reality - with 3D modeling software we can take something as simple as a sketch on a napkin and turn it into a custom solution for your business. We're local to your facility - all of our engineers are US based, our equipment is built using US made parts in our US manufacturing plant.

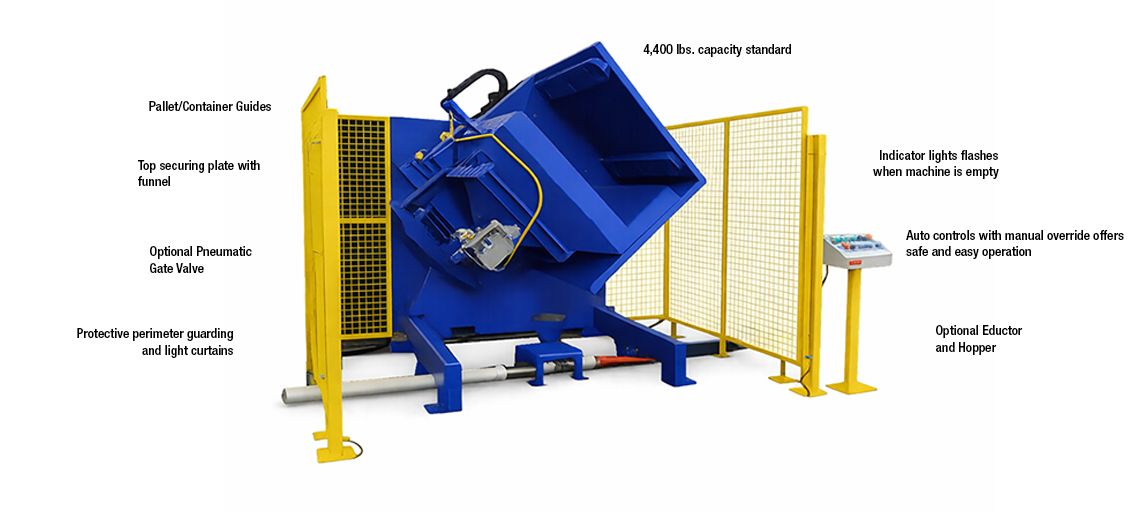

Product Tour


Specifications


ModelSC-75P/HBG
ControlsAutomatic operation
Loading Table SizeVaries
Max. Jaw Opening75"
Min. Jaw Opening42"
Pallet ClearanceVaries
FinishTwo part epoxy
Capacity4,400 Lbs
Adjustable Clamp Pressure400-1600 PSI
System Pressure2200 PSI
Speed ControlYes
Maintenance Lock Outs4
Motor5HP
Power Source208/230/460/575V 3 phase - please specify
CertificationsUL
Warranty3 year "hassle free" parts and labor
Loading HeightVaries
Loading Height UprightVaries
Operating WidthVaries
Operating DepthVaries
Operating HeightVaries
Loading Height InvertedVaries
Turning RadiusVaries
Shipping Class*100
Shipping weight*Varies
BrandCherry's Industrial Equipment Corp
