SC Pallet Inverter - Extra Wide Basket

SC-63P/DBL

The SC-63P/DBL pallet inverter is ideal for flipping over wide loads; combining product from two pallets onto a larger size pallet or turning over two pallets at once to save loading time. Customization can include: 4,400 and 6,600 lb capacities; standoffs and slipsheet profiles for pallet less loading/unloading; push button, lanyard or auto controls; extended clamp range, interlock logic; light curtains and perimeter guards for employee protection.

Request a Quote

Call 847-443-3861 to speak with our experts

SC Pallet Inverter - Extra Wide Basket Image 1

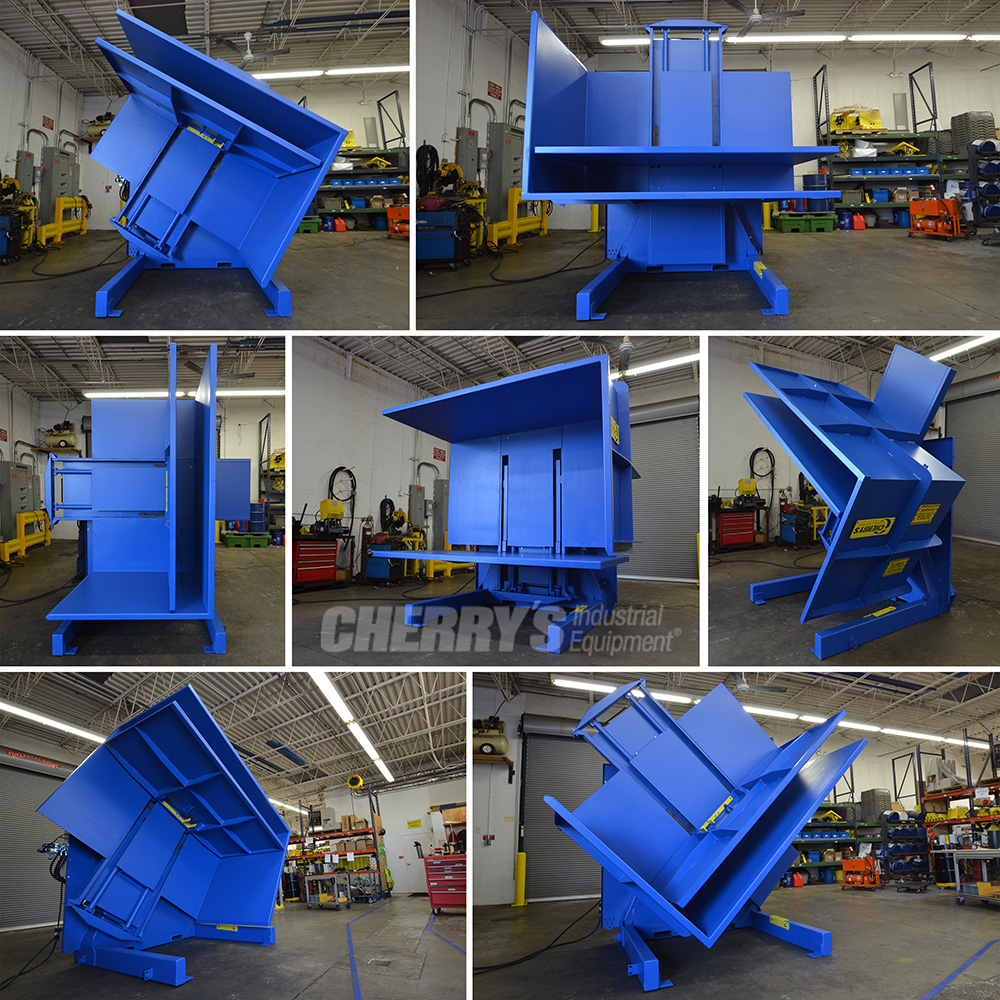

SC Pallet Inverter - Extra Wide Basket Image 2

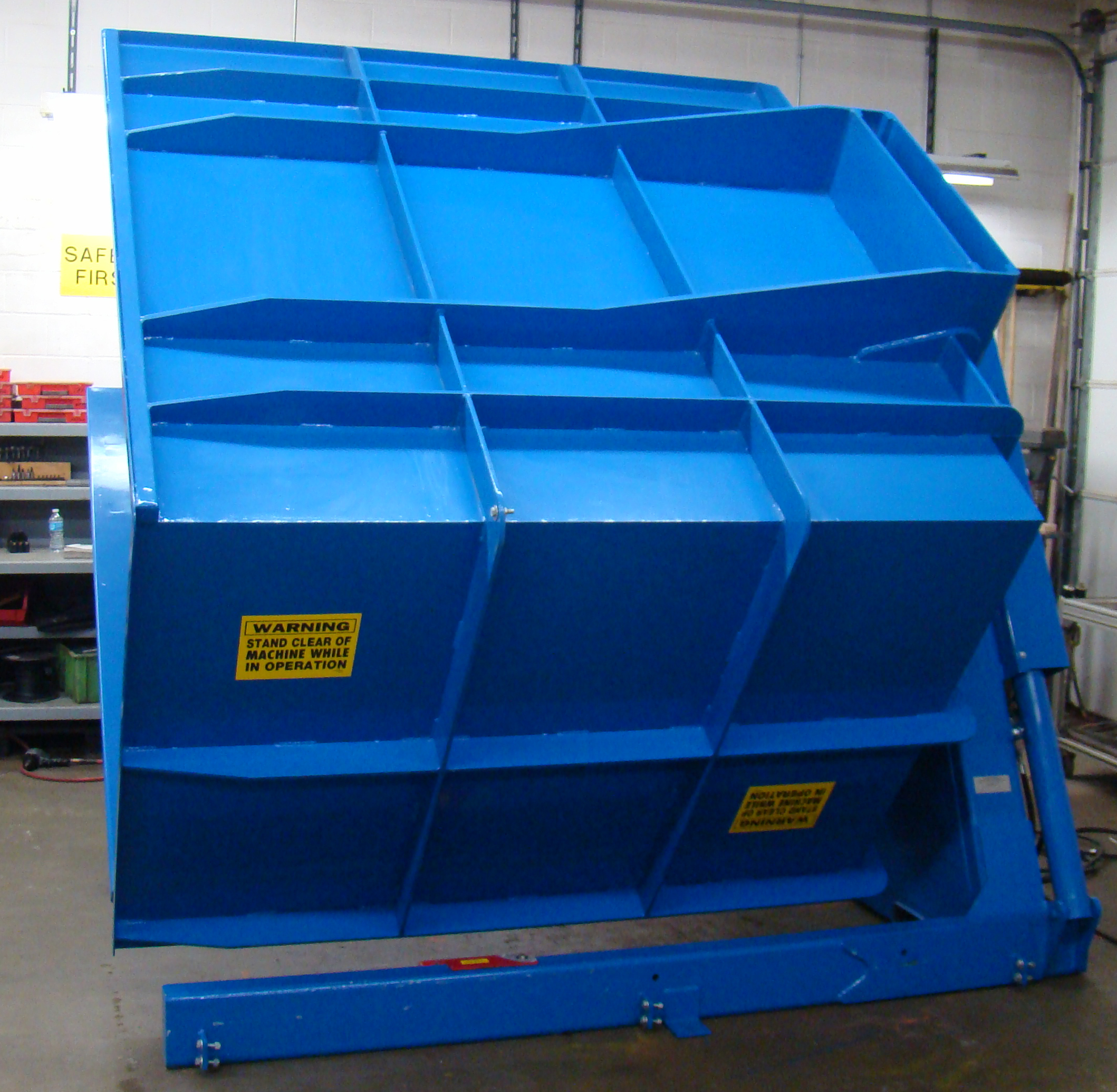

SC Pallet Inverter - Extra Wide Basket Image 3

SC Pallet Inverter - Extra Wide Basket Image 4

SC Pallet Inverter - Extra Wide Basket Image 5

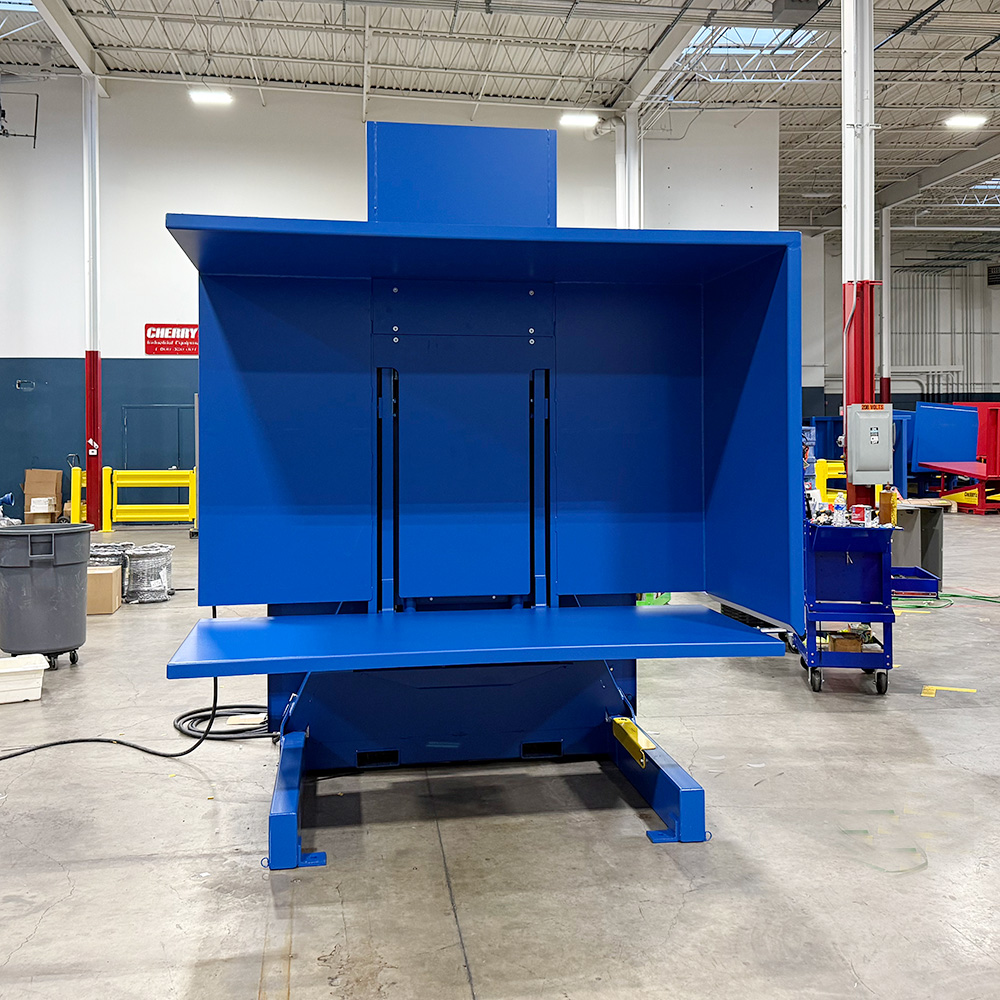

SC Pallet Inverter - Extra Wide Basket Image 6

SC Pallet Inverter - Extra Wide Basket Image 7

SC Pallet Inverter - Extra Wide Basket Image 8

See it in the Wild

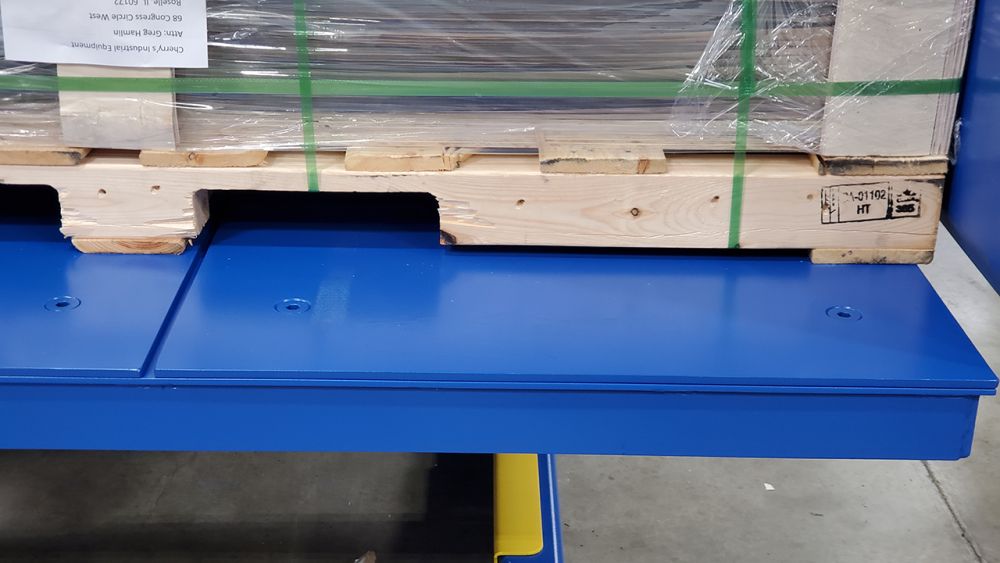

Pallet Inverter with leveling plates

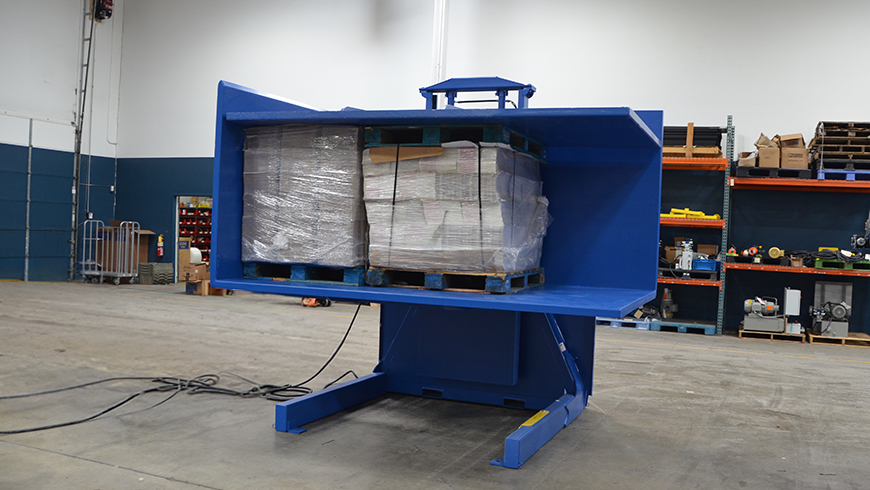

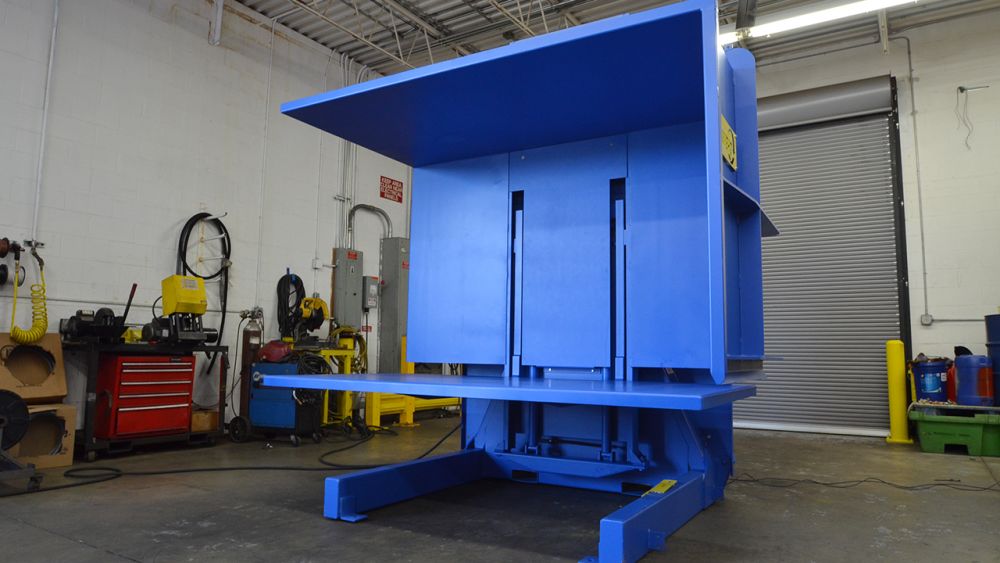

Pallet Inverter with double wide basket

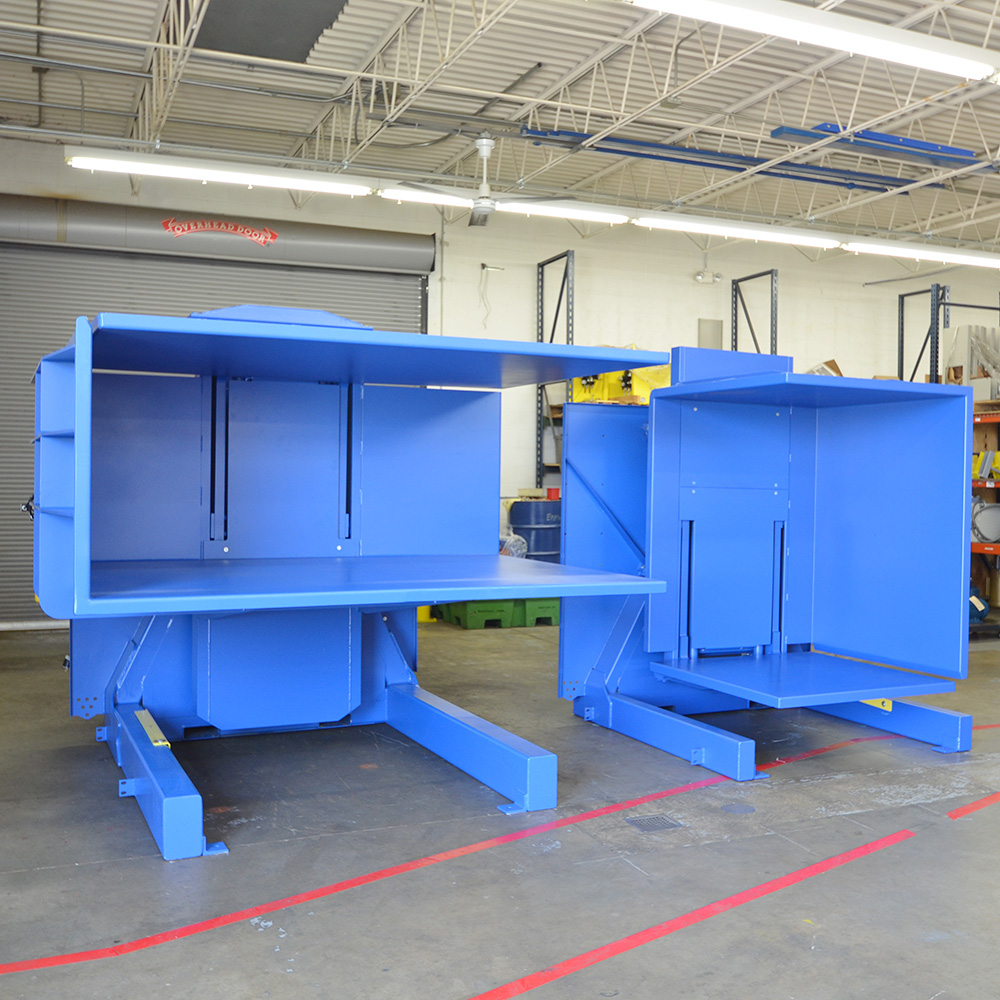

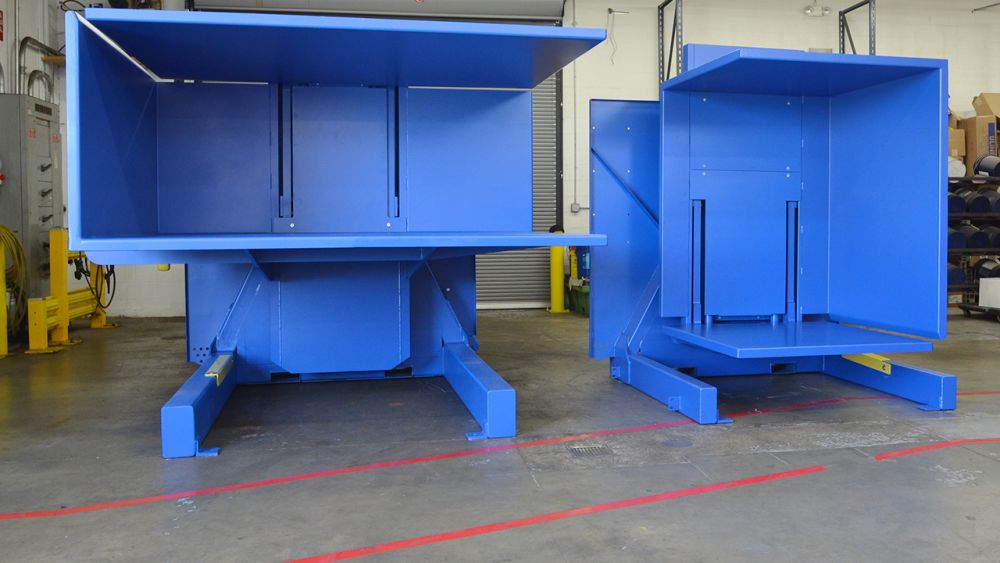

SC Inverter with wide basket compared to standard SC-63P

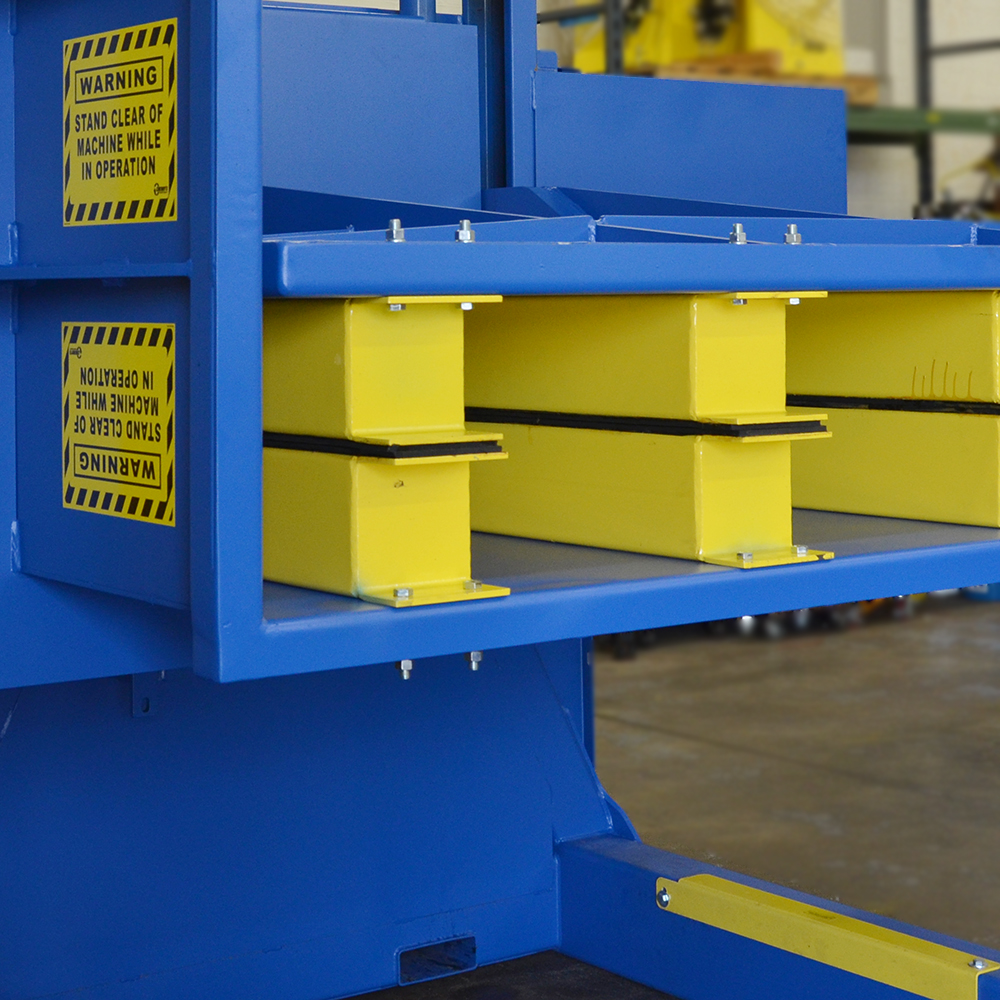

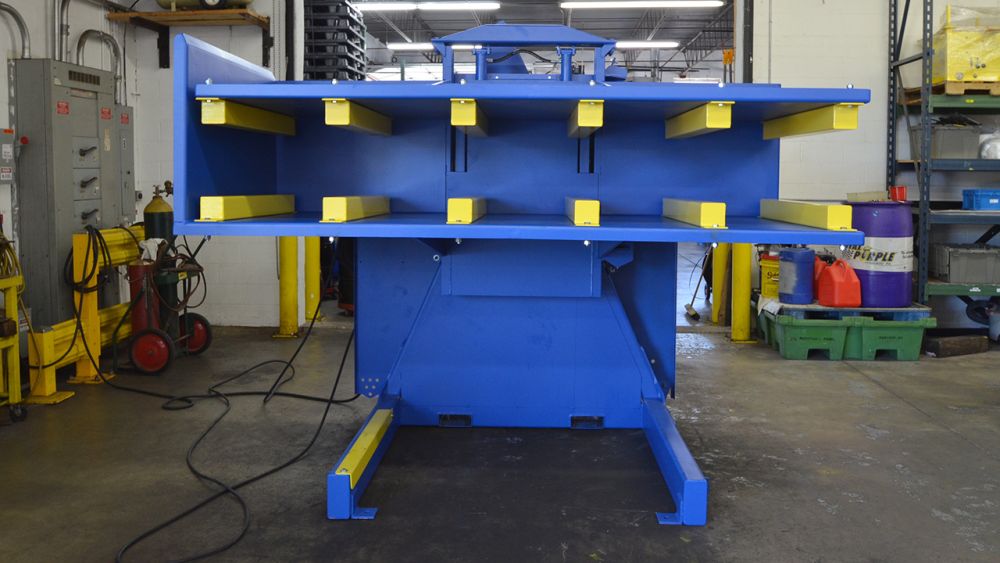

SC Pallet Inverter with pallet less standoffs

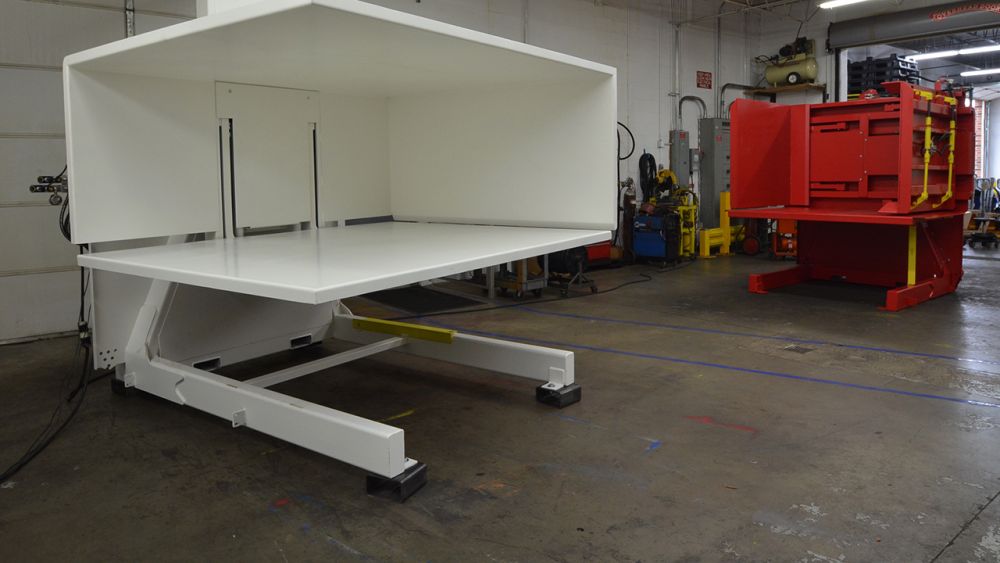

White SC Pallet Inverter next to Custom DC Pallet Inverter

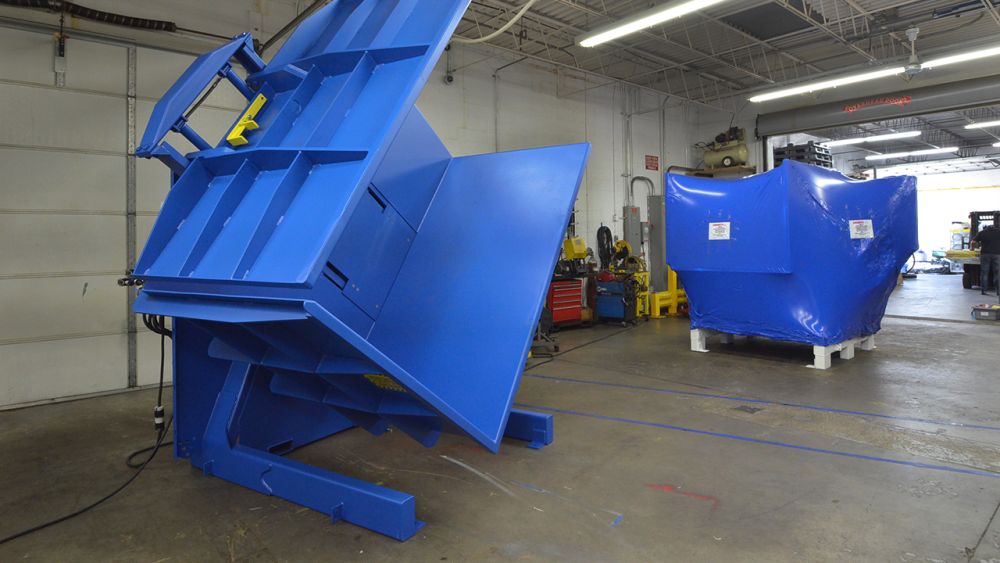

Double wide Pallet Inverter with DC Pallet Inverter wrapped for shipping.

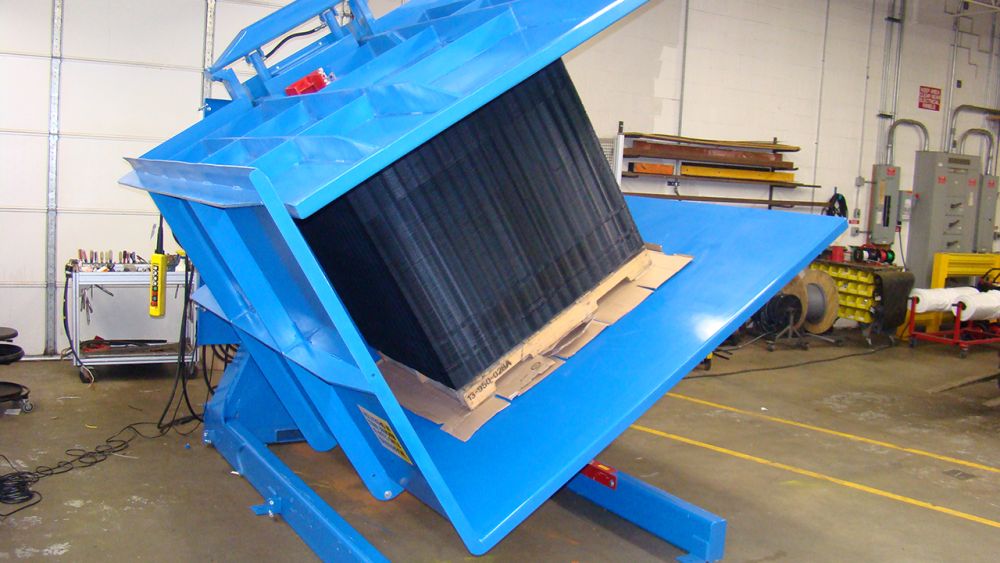

SC Pallet Inverter double wide and deep

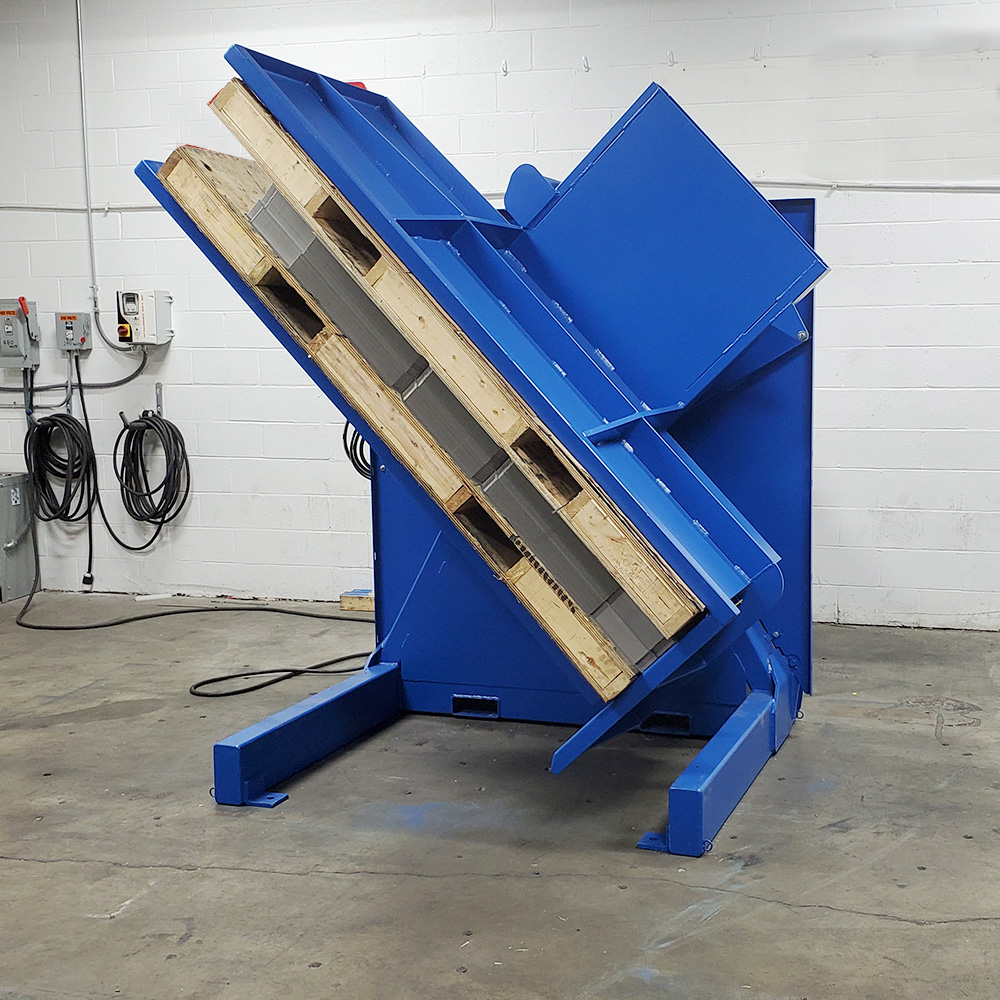

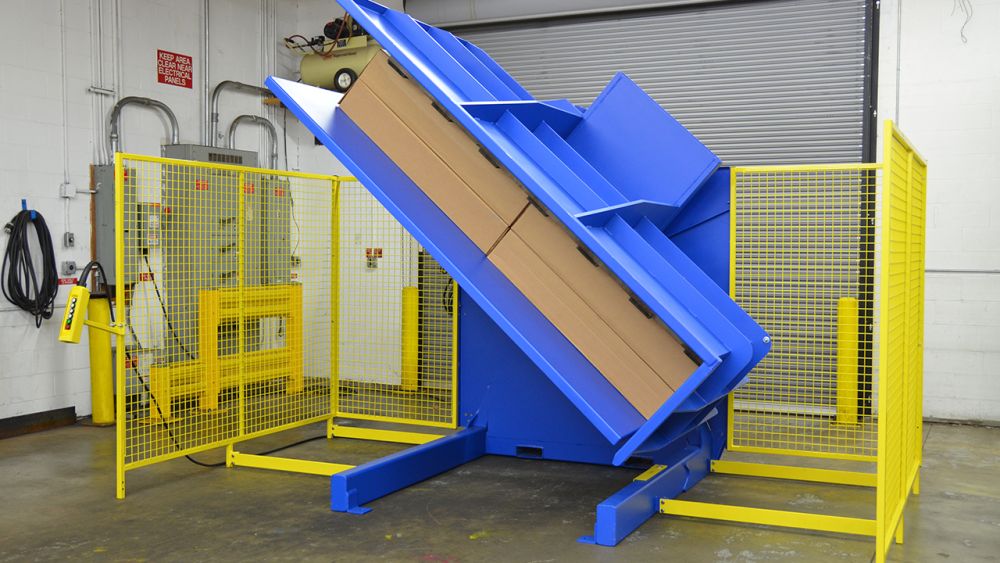

Pallet Inverter with side by side loads

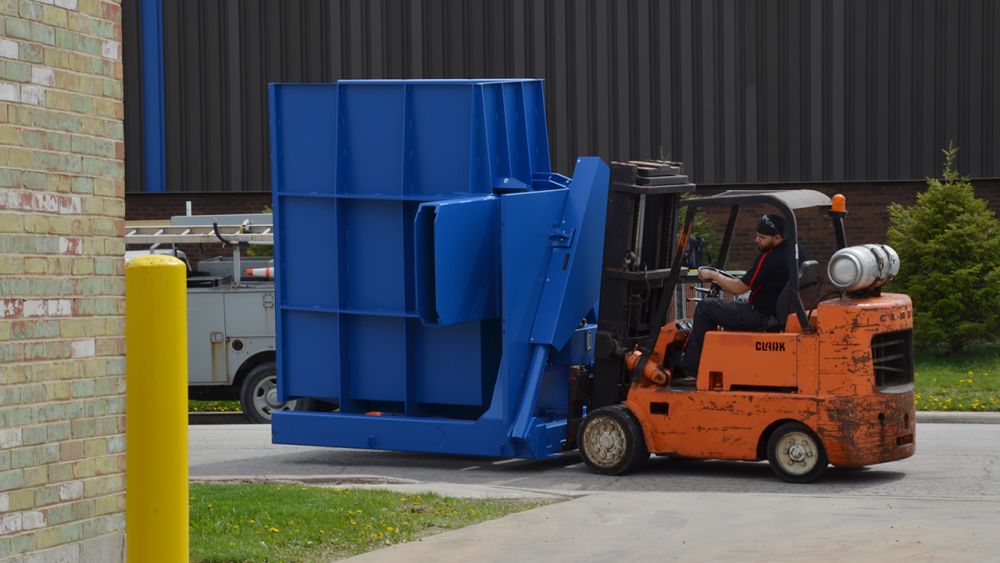

SC double wide pallet inverter transported by forklift

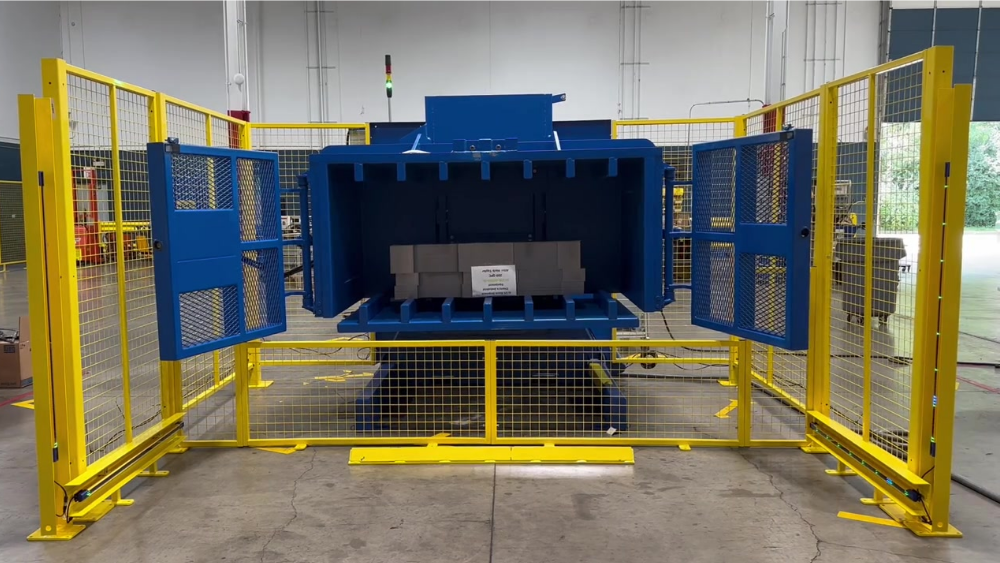

Custom SC Wide Body Pallet Inverter with latching gate

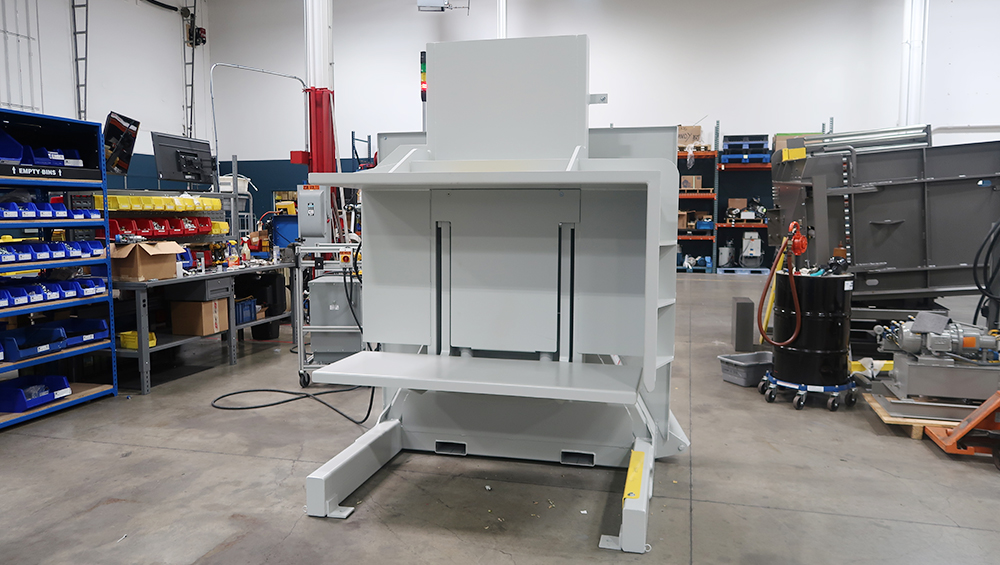

SC Pallet Inverter

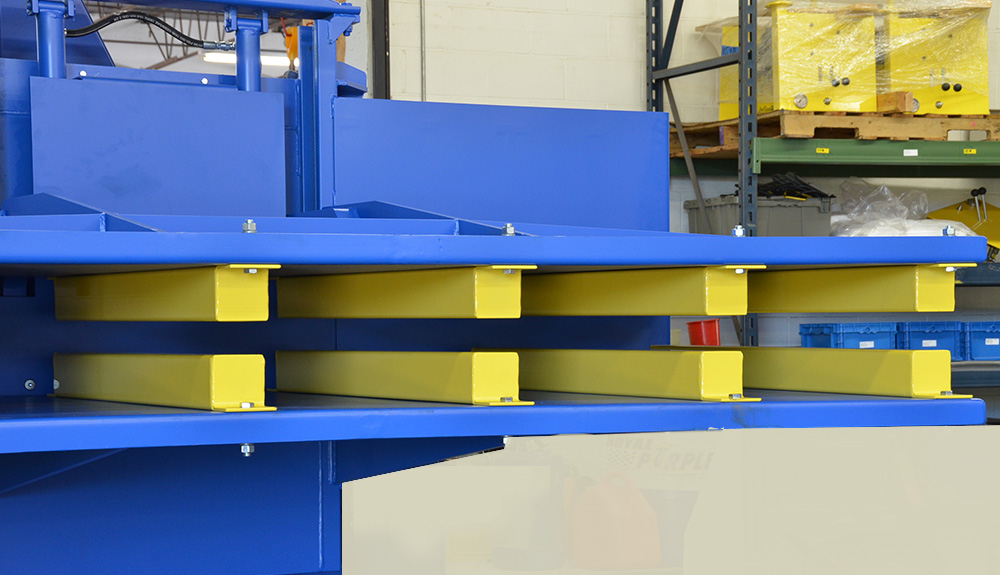

SC Wide Body Pallet Inverter with standoffs

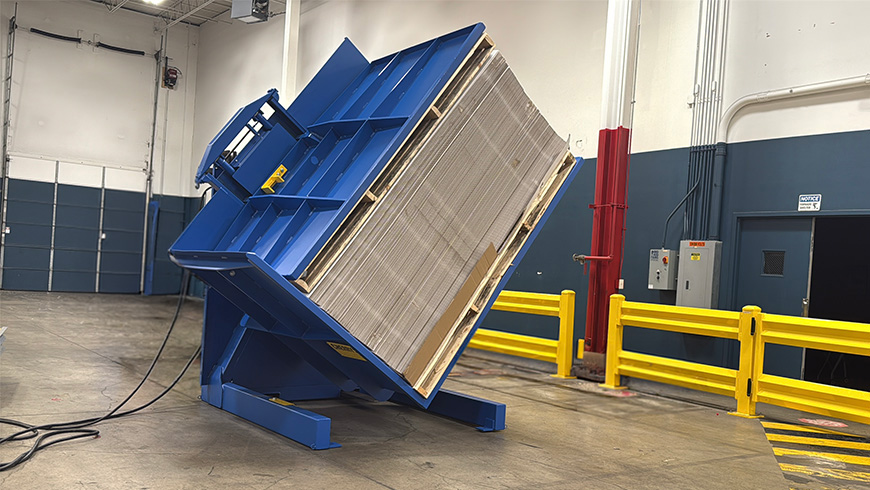

Wide Body Pallet Inverter inverting printed plastic sheets

Product Information

Cherry's can customize the SC pallet inverter to handle increased weights, large sheets, coils, unusual shapes or other materials that require simple 180 degree inversion. Interested in saving more time and eliminating steps, we can add automatic sequenced controls and pallet retaining gripper bars to eliminate manual pallet handling. From imagination to reality – with 3D modeling software we can take something as simple as a sketch on a napkin and turn it into a custom solution for your business. We're local to your facility – all of our engineers are US based, our equipment is built using US made parts in our US manufacturing plant.

Specifications

Model	SC-63P/DBL
Controls	Six button pendant
Loading Table Size	Up to 96"
Max. Jaw Opening	63"
Min. Jaw Opening	36"
Pallet Clearance	Varies
Finish	Two part epoxy
Capacity	4,400 Lbs
Adjustable Clamp Pressure	400-1600 PSI

System Pressure	2200 PSI
Speed Control	Yes
Maintenance Lock Outs	4
Motor	5HP
Power Source	208/230/460/575V 3 phase - please specify
Certifications	UL
Warranty	3 year "hassle free" parts and labor
Loading Height	Varies
Loading Height Upright	Varies

Operating Width	Varies
Operating Depth	Varies
Operating Height	Varies
Loading Height Inverted	Varies
Turning Radius	Varies
Shipping Class*	100
Shipping weight*	Varies
Brand	Cherry's Industrial Equipment Corp
