Demo Unit - Single Clamp Pallet Inverter


SC-63P/CO

Clearance Item - Subject to Prior Sale! This SC-63P/CO 180 degree Pallet Inverter was previously new and used only as a short-term demo unit. Now available at a discounted price, it comes with a 3-year parts warranty. Ideal for pallet replacement or recovering damaged product loads, the inverter increases efficiency while reducing the risk of worker injury. A reliable, heavy-duty solution - offered at exceptional value while inventory lasts.

Call 847-443-3861 to speak with our experts

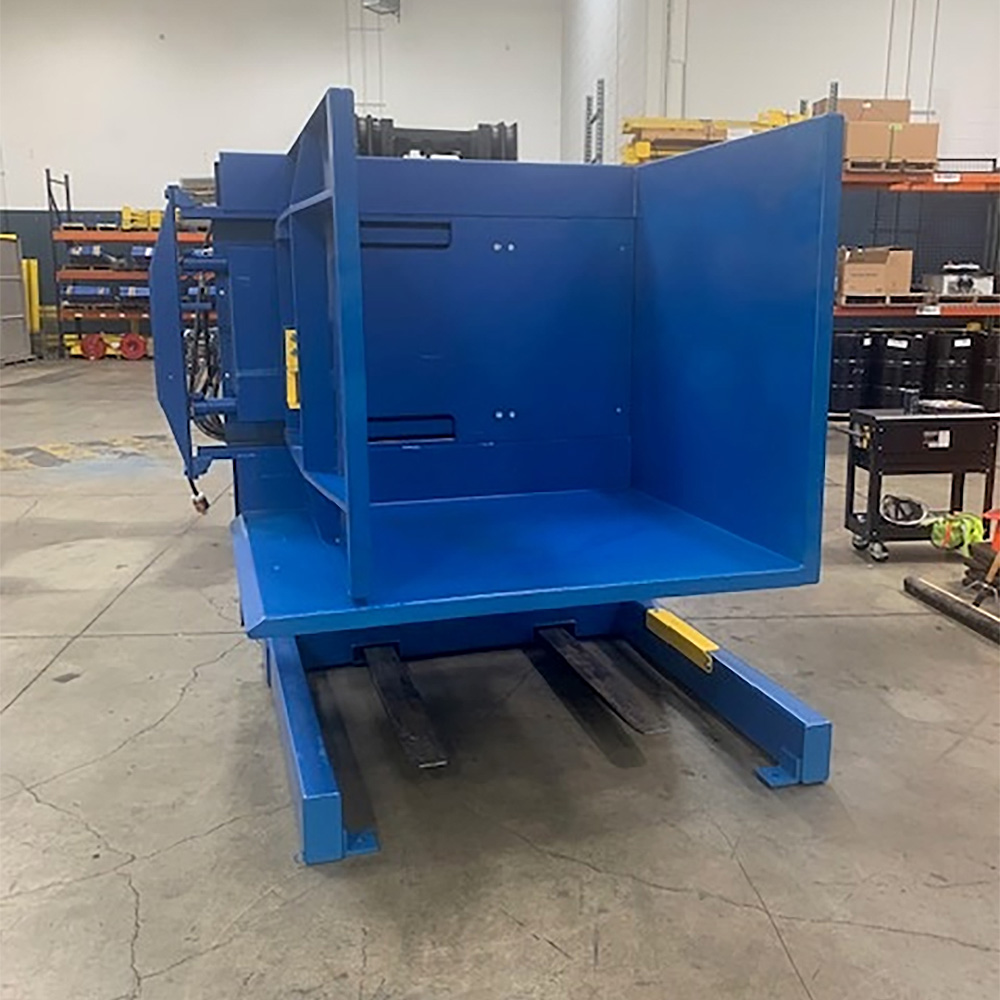

Demo Unit - Single Clamp Pallet Inverter

See it in the Wild

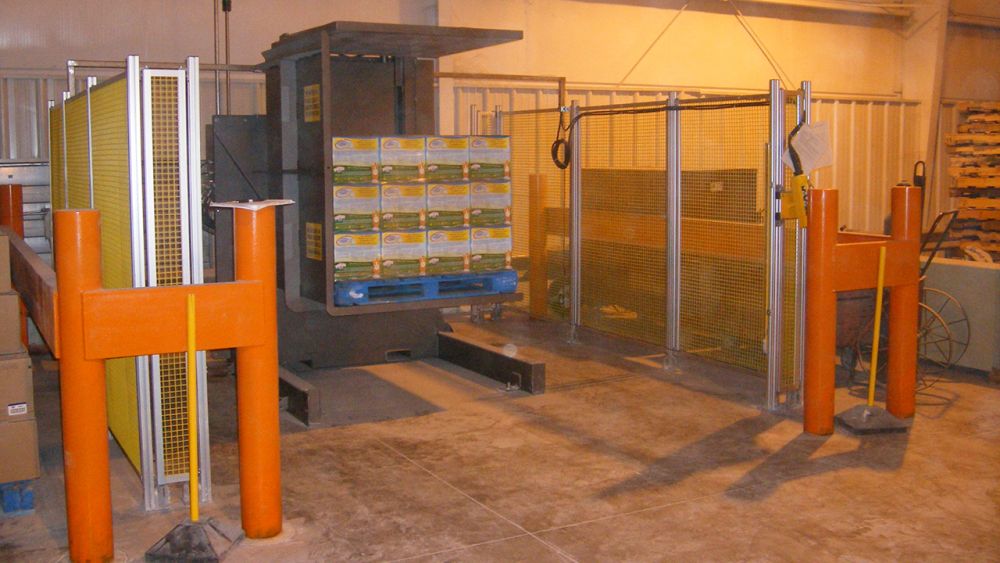

Pallet Inverter turning over boxes of kitty litter to recover damages cases Pallet Inverter turning over boxes of kitty litter to recover damages cases

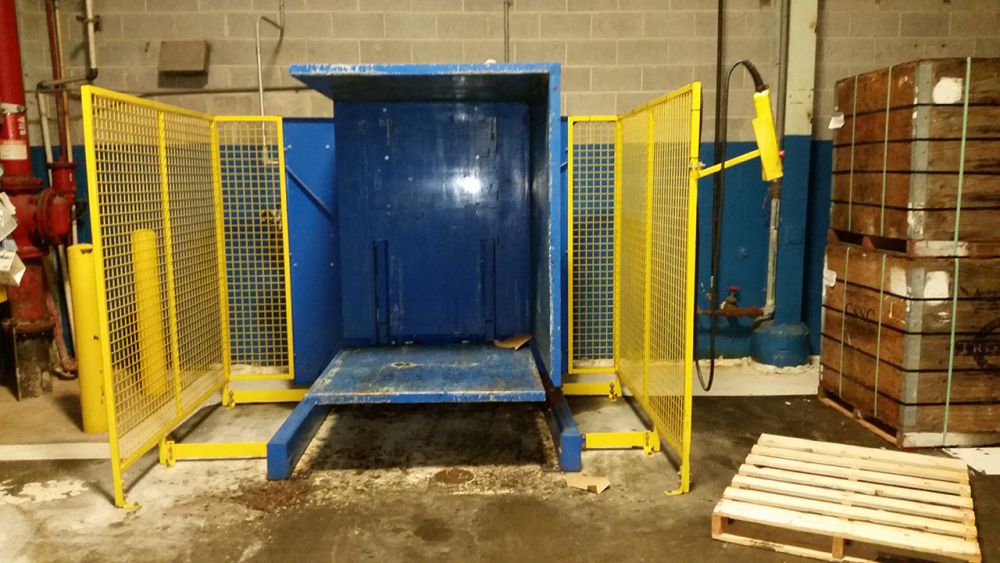

Pallet Inverter in heavy use at a manufacturing facility Pallet Inverter in heavy use at a manufacturing facility

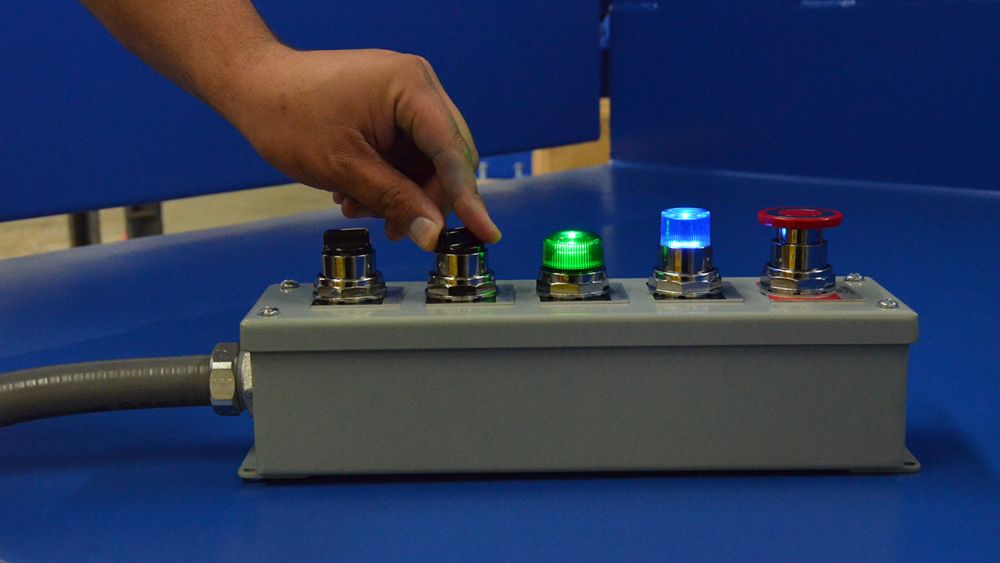

Customer specific controls for a SC-63 Pallet Inverter Customer specific controls for a SC-63 Pallet Inverter

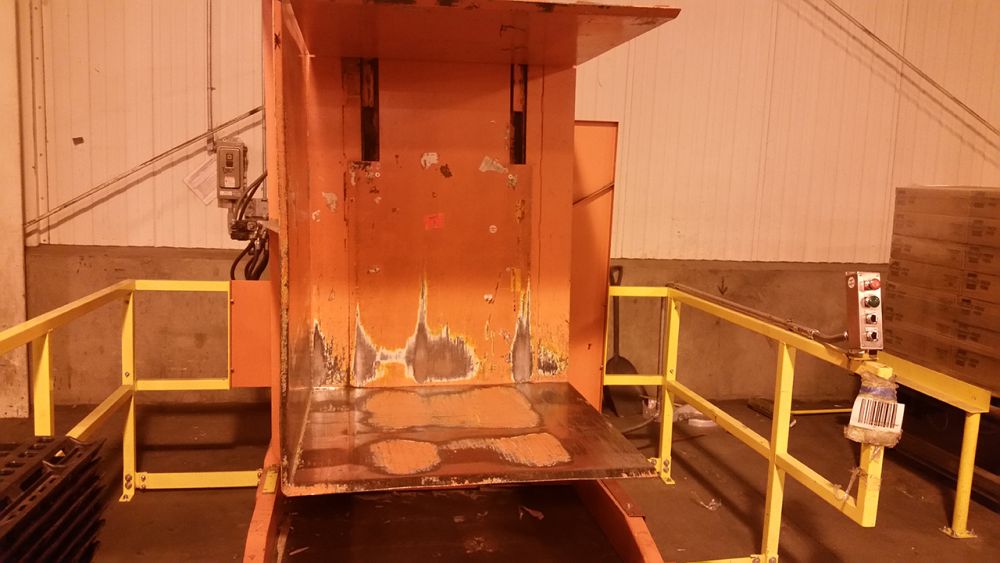

Pallet Inverter with protective rail guards Pallet Inverter with protective rail guards

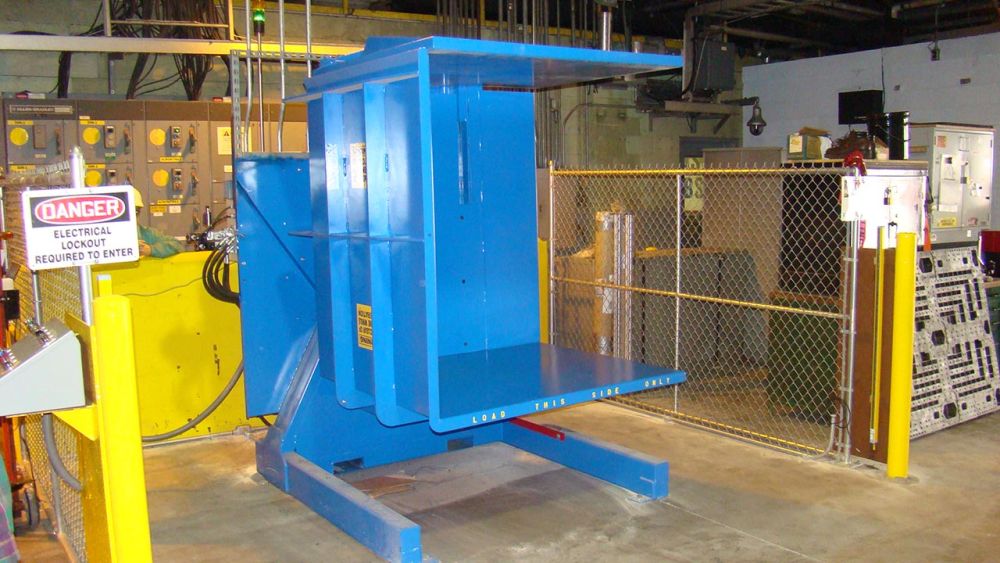

Pallet Inverter with guarding at a chemical plant Pallet Inverter with guarding at a chemical plant

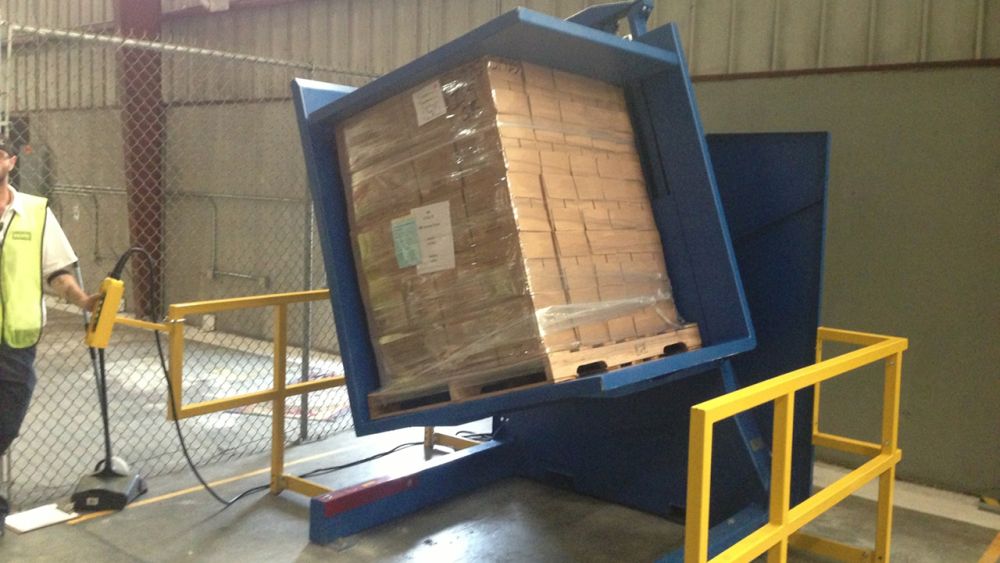

Pallet Inverter turning over cases Pallet Inverter turning over cases

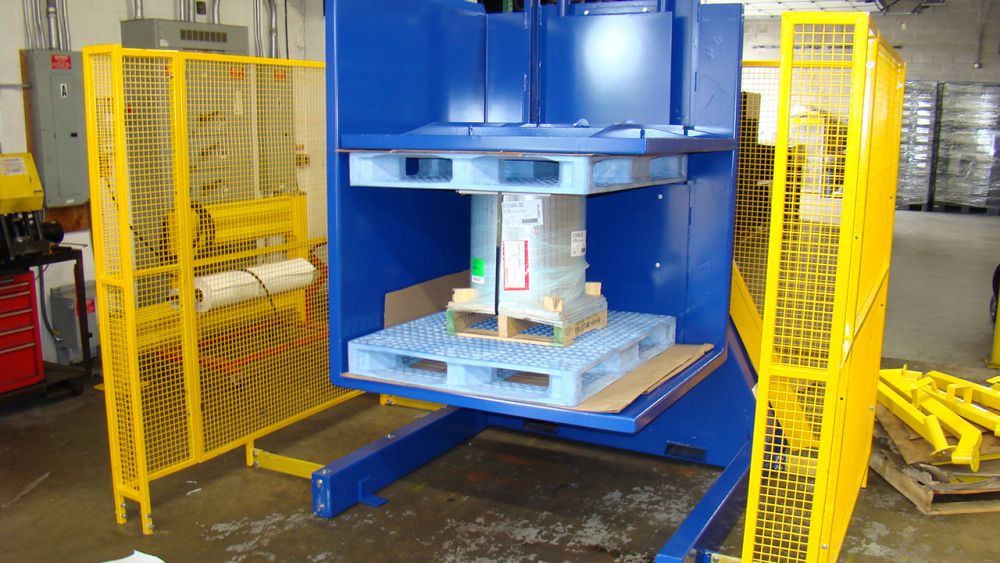

Pallet Inverter flipping over plastic film Pallet Inverter flipping over plastic film

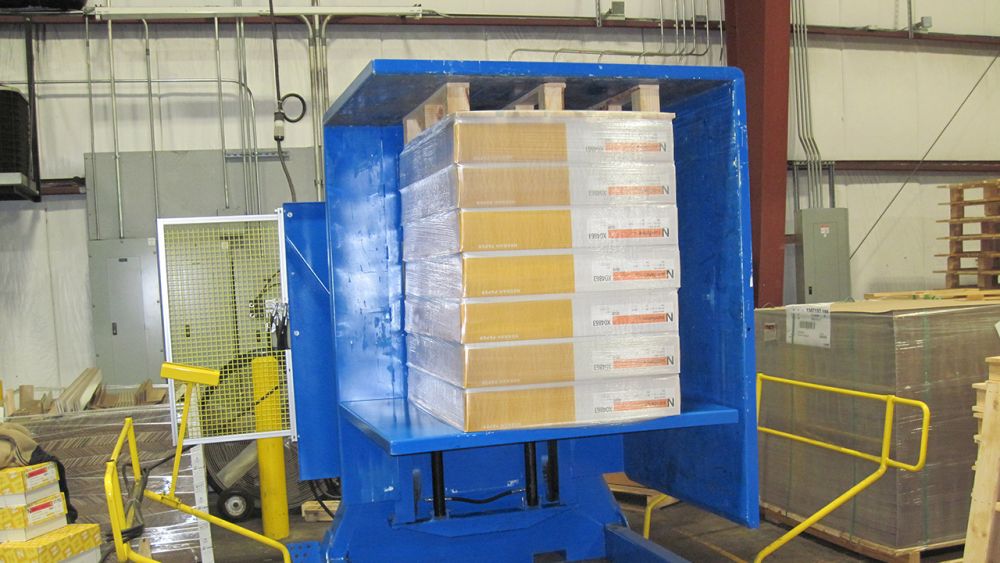

Pallet inverting transfering flooring to an export pallet Pallet inverting transfering flooring to an export pallet

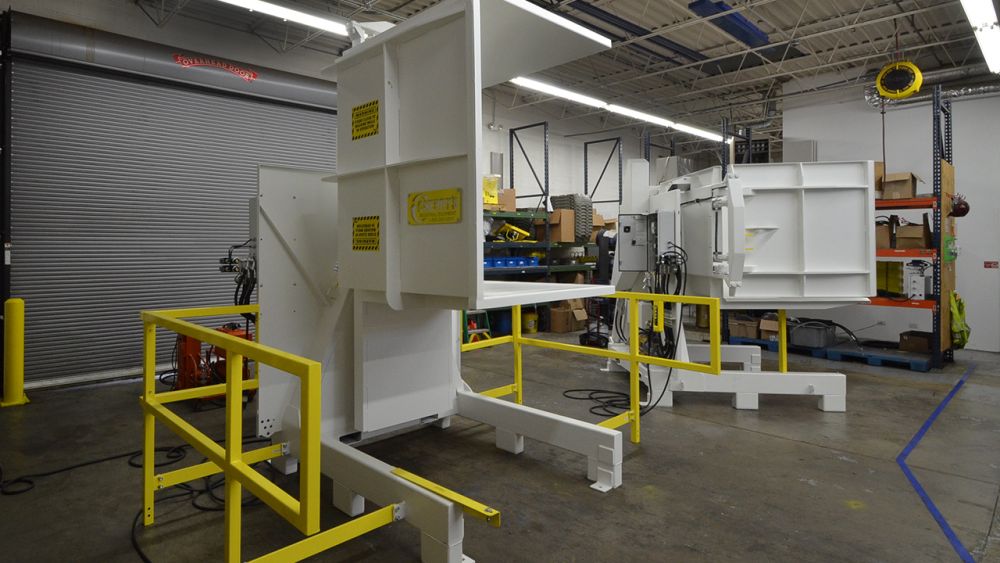

Pallet Inverter built with risers for easy cleaning around the machine Pallet Inverter built with risers for easy cleaning around the machine
×

Product Information

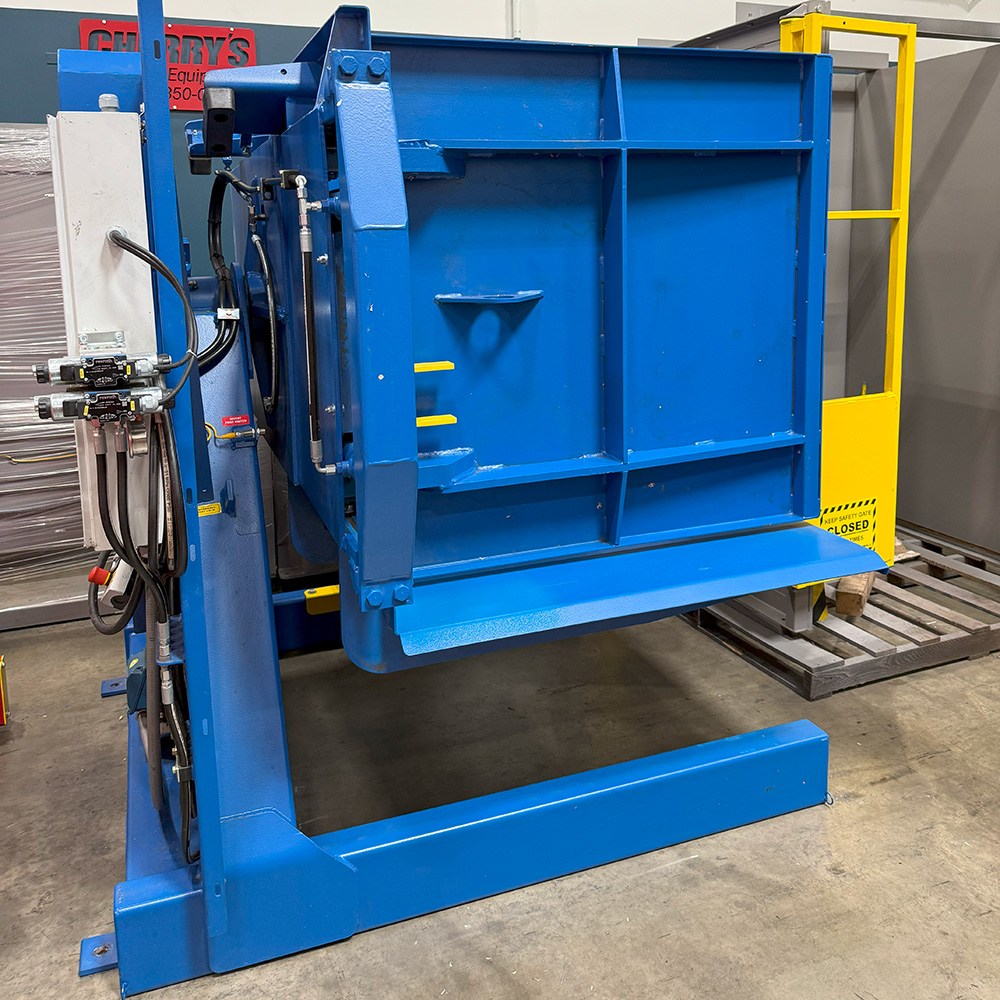

Clearance SC-63P 180 degree Pallet Inverter - Lightly Used, High-Value Offering This SC-63P freestanding pallet inverter is sold with essential safety and control components, including a safety-rated electrical panel, forklift guard rails, and a push-button pendant for simple operation. The unit has been lightly used - fewer than 20 full cycles (approximately one hour of runtime) - and includes minor cosmetic touch-ups to the paint and a slight imperfection on the electrical panel. Key specifications include a jaw opening range from 30" to 63", a 4,400 lb load capacity, and the ability to complete a full 180 degree rotation in just 17 seconds for quick pallet exchange or load recovery. The large 50" x 50" loading table accommodates a wide range of products, while adjustable clamp pressure (400 - 2,000 psi) allows for tailored handling. Finished in a durable blue epoxy coating and backed by a 3-year parts and labor warranty, this unit is a cost-effective, safety-focused solution - available now at a discounted clearance price.

Product Tour


Specifications


ModelSC-63P/CO

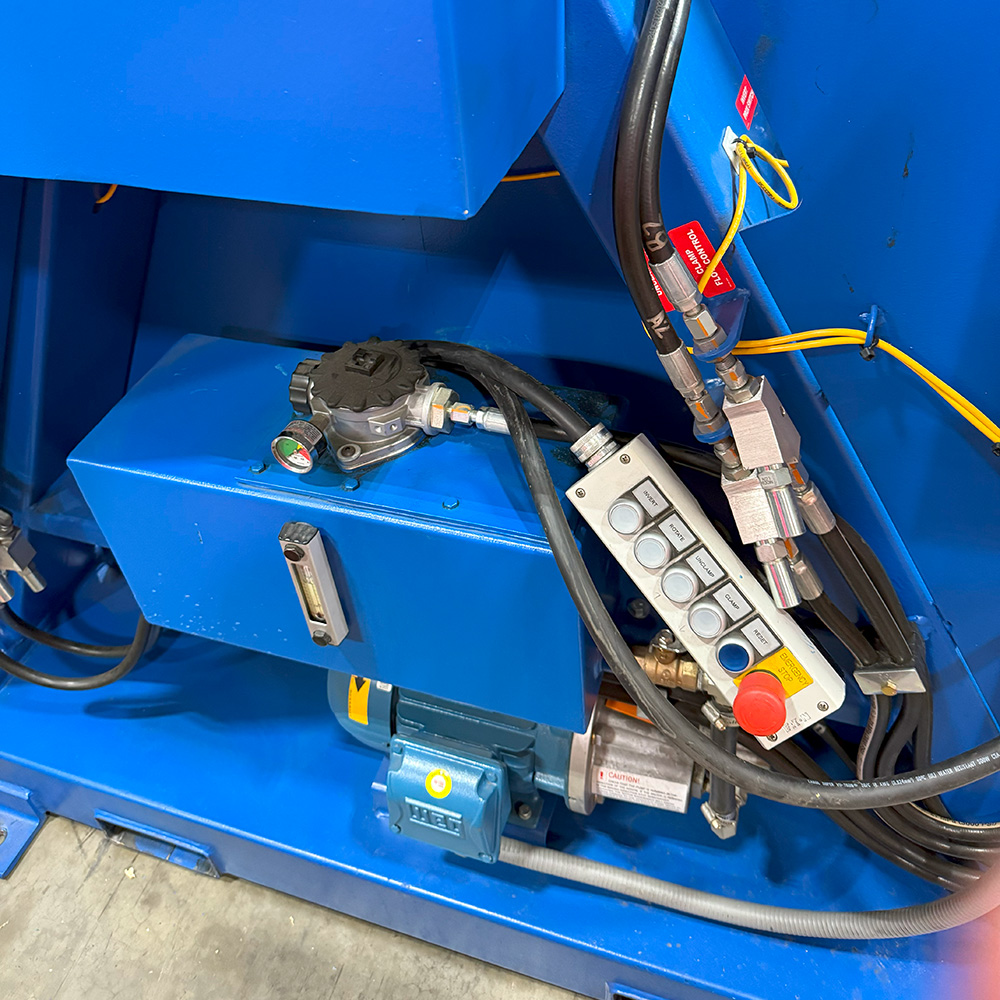

ControlsSix Button Pendant
Loading Table Size50" x 50"
Max. Jaw Opening63"
Min. Jaw Opening30"
Working Table Height28.75"
FinishBlue Epoxy Paint
Capacity4,400 lbs
Adjustable Clamp Pressure400-2,000 PSI
System Pressure2,200 PSI

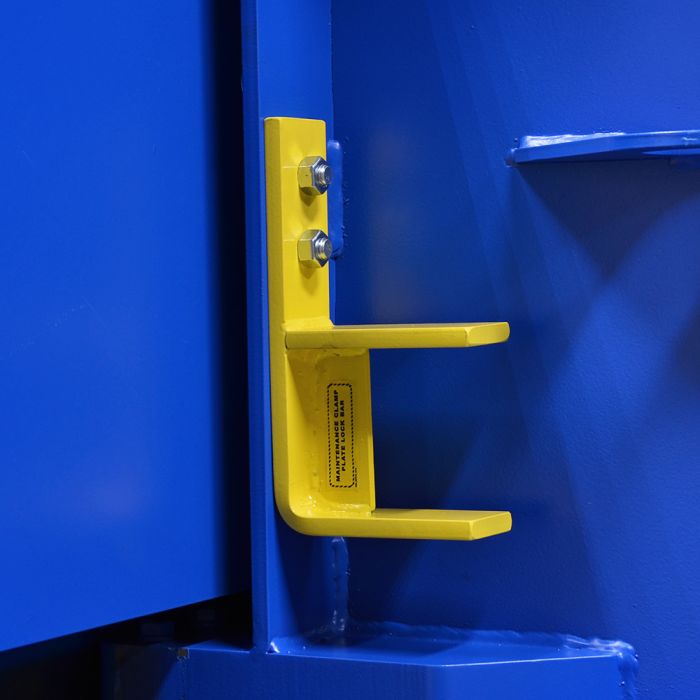

Maintenance Lock Outs4
Motor5 HP
Power Source480V 3 Phase
CertificationsUL 508a Certified Panel
Warranty3 year parts and 1 year labor. Extended service agreements available.
FOBRoselle, IL
Loading Height Upright28-3/4"
Operating Width95"
Operating Depth78.5"
Operating Height101-1/2"
Loading Height Inverted16-3/8"
Width With GuardsGR-123"
Shipping weight*3,500 lbs
Shipping Dimensions84" L x 84" W x 84" H

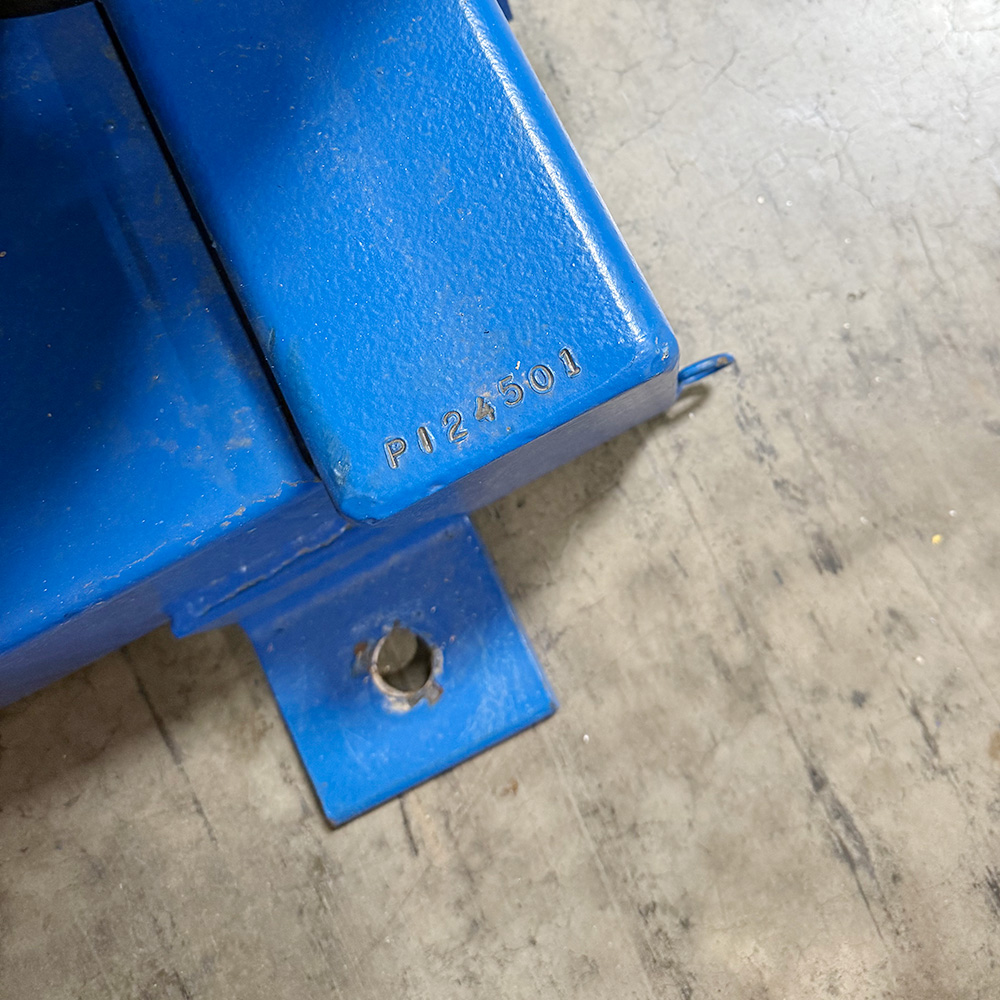

Serial #PI-24501
BrandCherry's Industrial Equipment Corp
