90 degree Discharge Pallet Dispenser

PD/50-57

The PD/50-57 automatic pallet dispenser will save time and help to create a safer and more productive environment for your workers. The dispenser is compatible with all pallet types and features a robust 1,500-lb. capacity along with a rapid 30-second cycle time.

Request a Quote

Call 847-443-3861 to speak with our experts

90 degree Discharge Pallet Dispenser Image 1

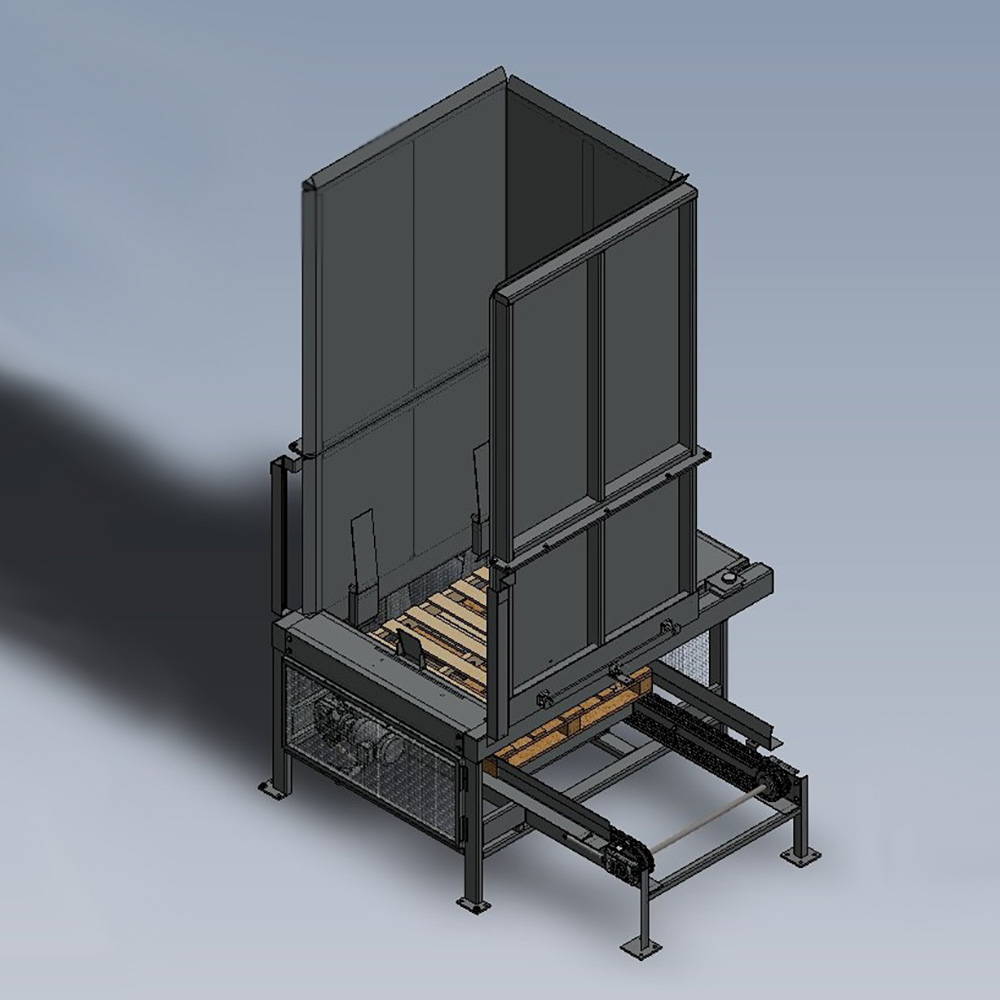

90 degree Discharge Pallet Dispenser Image 2

Product Information

The PD/50-57 direct-loading 90 degree discharge pallet dispenser can accommodate up to 40 pallets at once. Depending on the model, you use it to dispense pallets inline or at a 90-degree angle for magazine loading. The automatic cycle control minimizes the need for human intervention, which can lower your labor costs. The efficient 460V three-phase motor will provide many years of reliable service.

Specifications

Model	PD/50-57
Operating Height	96"
Brand	Cherry's Industrial
Controller	Allen Bradley
Cycle Time	30 seconds
Controls	Auto Cycle
Capacity	1,500 lbs

Operating Depth	72"
Operating Length	72"
Type Of Pallet	All types
Power Source	460V 3 phase
# of Pallets	40 pallets
Certifications	UL approved
Motor	1

System Pressure	60 psi
Conveyor Top Of Roller	18"
Load in Height	approx 28"
Discharge Height	18"
Shipping weight*	3,500 lbs
Brand	Cherry's Industrial Equipment Corp
