PD 4500 Single Pallet Dispenser


PD 4500

The PD 4500 pallet dispenser provides your team with a fast, efficient method for storing pallets and moving them to and from your plant or warehouse floor. The PD 4500 automatic pallet dispenser can also reduce workplace injuries by minimizing the need for manual handling.

Call 847-443-3861 to speak with our experts

Layout drawingLayout Drawing-CG
PD 4500 Single Pallet Dispenser

See it in the Wild

×

Product Information

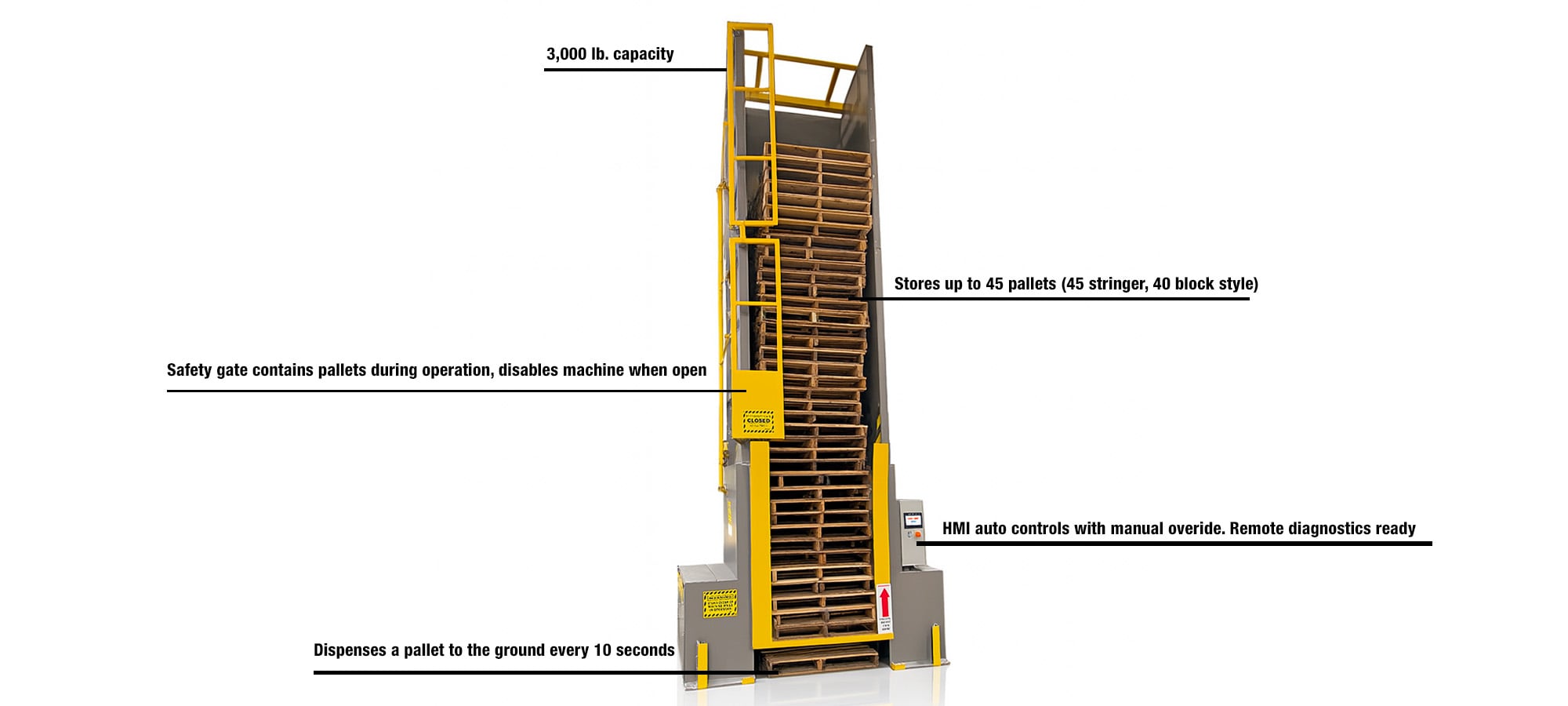

The revolutionary PD-4500 pallet dispensing system is a preferred choice of distribution centers looking for ways to increase productivity and create a safer work environment. Compatible with any manual, electric or ride-on pallet truck, this 3,000-lb.-capacity pallet dispenser can hold 40 to 45 pallets at once. The fast 6-7 pallets-per-minute cycle time helps you keep your demanding material handling schedule on track. Key features, benefits and specifications include: front swing gate prevents tipping and disables the dispenser while in the open position, heavy duty construction for a long lifespan, continuous run hydraulic power unit with 2HP motor for power and reliability, auto controls with manual override enables simple operation.

Product Tour


Specifications


ModelPD-4500
Operating Height20'
ControllerEXOR eSMART HMI/PLC
Cycle Time10 seconds
ControlsAuto Cycle/Manual Reset
Capacity45 pallets max
Operating Depth5'1"
Operating Width7'9"
Type Of PalletCHEP Block, GMA & Stringer
Power Source208/230/460/575V 3 phase 60 Hz
# of Pallets40-45 (block/stringer)
CertificationsUL508a UL Certified
Motor2HP WEG
System Pressure2000 psi
Load in Height80" (To clear front pallet aligners)
Discharge HeightGround Level
Warranty1 year
Shipping weight*4,000 lbs
Shipping Dimensions96" L X 60" W X 84" H
BrandCherry's Industrial Equipment Corp

Have Questions

Call 847-443-3861 to speak with our experts

Configuration Options


Controls

The PD-4500 offers an HMI Color touchscreen for diagnostics and automatic operation with a manual override for maintenance. Includes a RM node to monitor critical machine data, mantenance alerts and notifications wirelessly.


HMI TouchscreenHMI Touchscreen
Stack lightStack light
Remote monitoring nodeRemote monitoring node

Guards

The PD-4500 Pallet Dispenser includes a foot obstruction sensor that protects against pinch points at the machine entrance. Optional guarding features protective crash guarding, safety rated foot switch, and pallet gate with safety rated switch that deactivates the machine when open.


Safety rated foot switchSafety rated foot switch
Safety scanner with stop and safe zonesSafety scanner with stop and safe zones
Safety rated gate switchSafety rated gate switch
Protective crash guardsProtective crash guards

Options

The PD-4500 Single Deep Pallet Dispenser ships complete with everything needed to get you started, floor anchors, hydraulic oil, controls and power unit. More Options are available including: powered safety gate, pivoting arm with pull cord and upgraded components to meet your application or corporate specification.


Powered gatePowered gate
Pivoting boom with lanyardPivoting boom with lanyard
Voltage seperationVoltage seperation
Paint colors/finishesPaint colors/finishes
